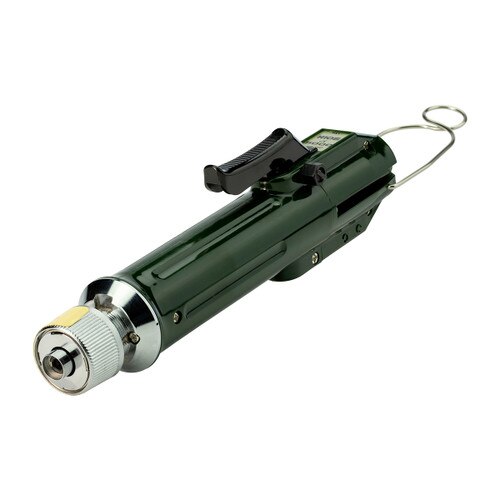

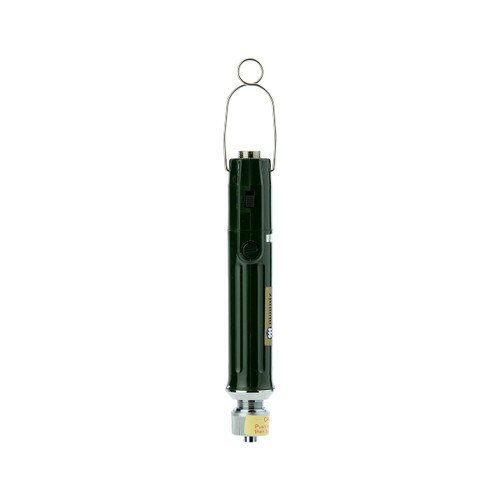

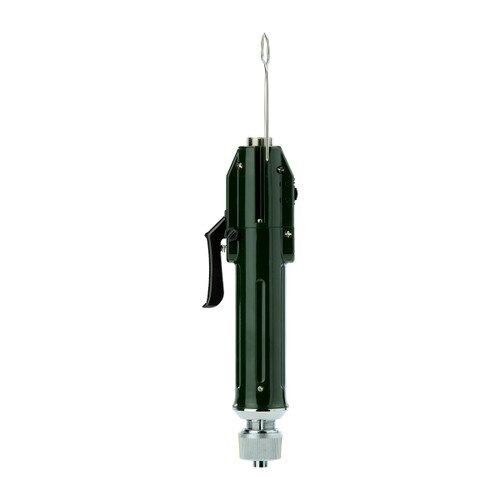

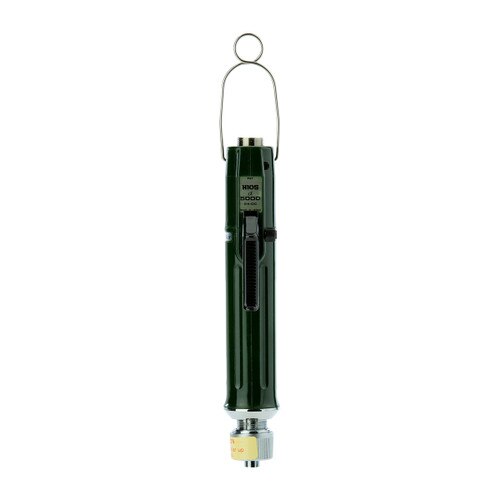

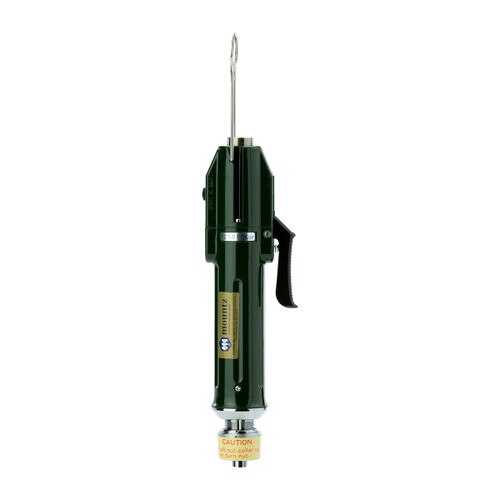

A5000 Electric Screwdriver
Item #: 144055
Calibration Options For This Product:
Add Calibration Service — $40.00
Preset Value is required
Torque Unit is required
Add Calibration Certificate
Time Interval is required
F
T
T
Required Companion Items:
Specs
Model:
A5000
Item #:
144055
Drive Size:
4mm Hios Dr.
American:
3.5 - 10 lbf.in
S.I.:
40 - 120 cN.m
Metric:
4 - 12 kgf.cm
Tool Weight:
16 oz.
Tool Length:
7.75
RPM High:
1000
RPM Low:
700
Grip Dia:
1 1/4"
The HIOS electric torque screwdriver is designed with a powerful, high speed motor to increase productivity and efficiency. Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved.
- Various models that range from 3.5 - 16 lbf.in.
- A-Series drivers utilize a samarium cobalt magnet in the motor to achieve higher speeds than comparable to the CL-Series drivers. Size and weight increases are minimal.
- Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved.
- External torque adjustment scale.
- Available with Lever Start and Push-to-Start models.
- Can be connected with the Scout Screw Counter.
- Requires a Transformer (power supply).
- ESD Models available upon request.
Note! Requires a Transformer (power supply).
