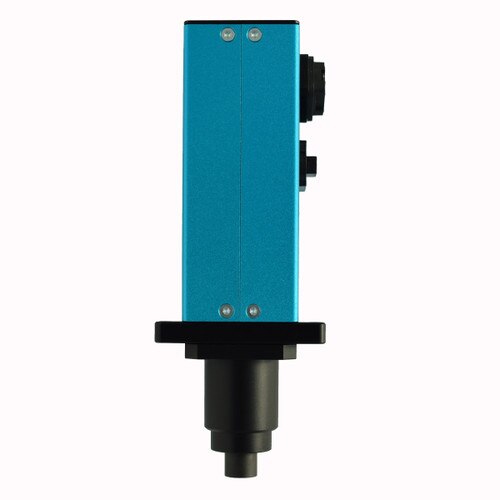

AD050R01-A/C Robotic Electric Spindle Screwdriver

Item #: 310060
Certifications:
$4,075.00

This tool typically ships within 3 - 4 weeks. For further information, call 408-684-1442.

The AD050R01-A/C is a reliable robotic spindle screwdriver system engineered for precise, accurate, and repeatable torqu READ MORE

Calibration Options For This Product:

Add Calibration Service — $35.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Item(s) successfully added to your cart.

F
T
T

You will also need

Item #310072
$2975.00
Item(s) successfully added to your cart.
Model:
AD050R01-A/C
Item #:
310060
Drive Size:
1/4" F/Hex
American:
0.4 - 5.2 lbf.in
S.I.:
4.5 - 58.7 cN.m
Metric:
0.5 - 6 kgf.cm
Tool Length:
6.875
Minimum Adjustable RPM Range:
150
Maximum Adjustable RPM Range:
2000
The AD050R01-A/C is a reliable robotic spindle screwdriver system engineered for precise, accurate, and repeatable torque control. The high-performance automation fastening system allows manufacturers to optimize the assembly area, reduce labor costs, and increase productivity. The robotic screwdriver system features built-in error-proofing data and screw counter. Multiple fastening strategies can be implemented for sensitive or difficult assembly joints. Increase productivity as one tool can be programmed to do the job of multiple conventional tools; saving time, maintenance cost, space & training.
    • Robotic spindle style electric screwdriver for automated and fixtured fastening applications.
    • Drivers include a front mounting flange.
    • Electric screwdriver is engineered for automation applications that provide manufactures with a rapid, reliable and precise method of fastening screws.
    • Reduces the production cycle.
    • Production flexibility and rapid reconfiguration for new production projects.
    • Low maintenance with an extended life cycle.
    • RequiresADC-100 Controller
    • Low inertial force provides smooth reaction-less operation with little G force to assembled parts.
    • Increase productivity with one tool instead of 2 - 15 tools.
    • Easy integration into production line. Rapid reconfiguration for new production projects.
    • Optimum asset utilization. Tooling expense delivers favorable return of investment.
    • Traceability and error-proofing. Real time monitoring.
    • ADC Controller has digital I/O signals for communication with external devices such as PLC.
    • ADC can be programmed with up to 15 process sequences with 15 program steps. Collect and save all fastening data on SD memory card.
    • ADC Controller provides fastening torque data analysis (Standard Deviation, Mean, Average, CP, CPK ).
    • Forward and reverse direction. Start and stop output signals.
    • Certified and documented fastening results. Supplied with free certification.
    • Operate a leaner production environment with flexible, configurable tool set up.
    • Make fastening compliance and documentation easy.
The A/C model is equipped with a bit cushion. Each AD robotic spindle screwdriver is supplied with the standard 3 meter length spindle cable set. The driver cable connects the AD-Series robotic screwdriver to the ADC controller.
