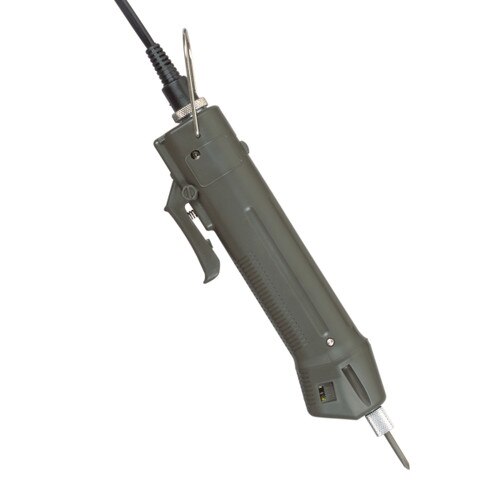

BL-5000X Brushless Electric Screwdriver

Item #: 144383
$895.00
The HIOS BL-Series is a brushless electric screwdriver designed for high production environments. Minimal heat build-up READ MORE

PRODUCT SPECIFICATIONS

Model:
BL-5000X
Item #:
144383
Drive Size:
1/4" F/Hex
American:
1.7 - 10 lbf.in
S.I.:
20 - 120 cN.m
Metric:
2 - 12 kgf.cm
Tool Weight:
12.7 oz.
Tool Length:
8
RPM High:
900
RPM Low:
590
Grip Dia:
1 1/4"

Item(s) successfully added to your cart.

Please select your calibration option below before adding to cart

Add Calibration Service — $35.00

Please select an option:
  ADD SERVICE
  NO SERVICE NEEDED

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Please select an option:
  ADD CERTIFICATE
  NO CERTIFICATE NEEDED

Time Interval is required

F
T
T

You will also need

T-45BL Transformer
Item #144267
$295.00
Item(s) successfully added to your cart.
T-70BL Transformer
Item #144400
$335.00
Item(s) successfully added to your cart.

Product Details

The HIOS BL-Series is a brushless electric screwdriver designed for high production environments. Minimal heat build-up even when tool is operated continuously. Featuring a high performance brushless motor design that provides durability and reduces the standard maintenance costs for electric screwdrivers. Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved.

Product Benefits

  • Torque Ranges 0.17 - 30 lbf.in
  • High performance brushless motor design provides durability and reduces the standard maintenance cost for electric drivers.
  • Soft texture ergonomic grip.
  • Start Systems:
    - BL-2000 models: Lever Start
    - BL-3000, BL-5000 & 7000 models: Two-way Start System (Switchable between Lever Start and Push-to-Start)
  • Vacuum and ESD models available.
  • ESD models prevent the occurrence of electrostatic discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation and profitability.
  • Torque adjustment scale.
  • Requires a transformer (power supply).
Note! PS are Push-to-Start models. OPC models are designed to only operate with HIOS BLOP-STC Screw Counter Transformer. Clean room models available upon request.
