BLG-4000XBC1 Brushless Electric Screwdriver

Item #: 144524
$985.00

This tool typically ships within 4 - 6 weeks. For further information, call 408-684-1442.

The HIOS BLG-BC1 Series is a brushless electric screwdriver with a built-in screw counter. The power tool is designed fo READ MORE
NOTE: Requires Companion Items View

Calibration Options For This Product:

Add Calibration Service — $40.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Item(s) successfully added to your cart.

F
T
T

Required Companion Items:

T-45BL Transformer
Item #144267
$330.00
Item(s) successfully added to your cart.
T-70BL Transformer
Item #144400
$375.00
Item(s) successfully added to your cart.

Specs

Model:
BLG-4000XBC1
Item #:
144524
Drive Size:
1/4" F/Hex
American:
0.9 - 4.8 lbf.in
S.I.:
10 - 55 cN.m
Metric:
1.5 - 5 kgf.cm
Tool Weight:
13.1 oz.
Tool Length:
8
RPM High:
1000
RPM Low:
690
Grip Dia:
1 1/4"

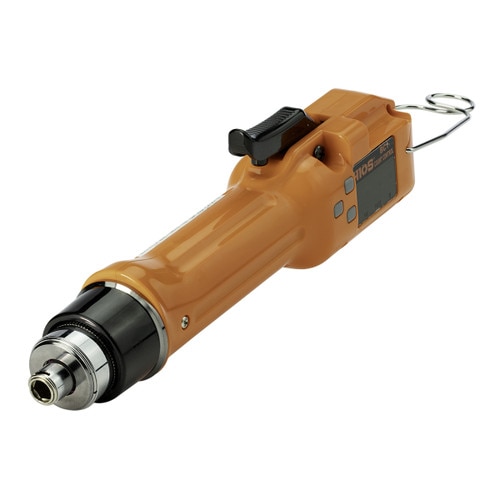

The HIOS BLG-BC1 Series is a brushless electric screwdriver with a built-in screw counter. The power tool is designed for high production environments at an affordable price. The screw counter helps manufacturers detect and eliminate costly screw-fastening errors during the assembly process. Features a high-performance brushless motor design that provides durability and reduces standard maintenance costs. Designed to detect cross-threading, omissions, unfinished rundowns, and cycle incompletes. Minimal heat build-up even when the tool is operated continuously. Provides precision torque control with an automatic shut-off clutch once preset torque is achieved. A quality tool at a great price.

    • Features a built-in screw counter. No external screw counter is needed
    • Detect and eliminate costly screw-fastening errors
    • Detects cross-threading, omissions, unfinished rundowns and cycle complete
    • Detection of fastening error and buzzer alert
    • Fastener accept and reject lights (Go/No Go)
    • Visual assembly fastener count (count up or down), including the total count. Program fastening time
    • High Power brushless motor design that provides durability and longer-lasting service life than a brush type electric screwdriver
    • Accurate torque control provides precise and controlled fastening with an automatic shut-off clutch
    • Minimal heat build-up while operating the tool continuously. External torque adjustment scale
    • Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved.
    • Requires a transformer T-45BL or T-70BL (power supply).
    • Lever start power tool

Requires a transformer T-45BL or T-70BL (power supply).
