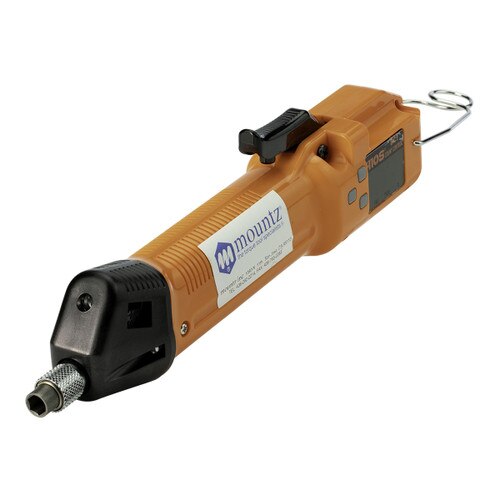

BLG-5000XBC1 Brushless Electric Screwdriver

Item #: 144525
$1,065.00

This tool typically ships within 4-5 weeks. For further information, call 408-684-1442.

The HIOS BLG-BC1 Series is a brushless electric screwdriver with a built-in screw counter. The power tool is designed fo READ MORE

Calibration Options For This Product:

Add Calibration Service — $35.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Item(s) successfully added to your cart.

F
T
T

You will also need

Item #144267
$295.00
Item(s) successfully added to your cart.
Item #144400
$335.00
Item(s) successfully added to your cart.
Model:
BLG-5000XBC1
Item #:
144525
Drive Size:
1/4" F/Hex
American:
1.7 - 10 lbf.in
S.I.:
20 - 120 cN.m
Metric:
2 - 12 kgf.cm
Tool Weight:
15 oz.
Tool Length:
9.25
RPM High:
1000
RPM Low:
690
Grip Dia:
1 1/2"
The HIOS BLG-BC1 Series is a brushless electric screwdriver with a built-in screw counter. The power tool is designed for high production environments at an affordable price. The screw counter helps manufacturers detect and eliminate costly screw-fastening errors during the assembly process. Features a high-performance brushless motor design that provides durability and reduces standard maintenance costs. Designed to detect cross-threading, omissions, unfinished rundowns, and cycle incompletes. Minimal heat build-up even when the tool is operated continuously. Provides precision torque control with an automatic shut-off clutch once preset torque is achieved. A quality tool at a great price.
    • Features a built-in screw counter. No external screw counter is needed
    • Detect and eliminate costly screw-fastening errors
    • Detects cross-threading, omissions, unfinished rundowns and cycle complete
    • Detection of fastening error and buzzer alert
    • Fastener accept and reject lights (Go/No Go)
    • Visual assembly fastener count (count up or down), including the total count. Program fastening time
    • High Power brushless motor design that provides durability and longer-lasting service life than a brush type electric screwdriver
    • Accurate torque control provides precise and controlled fastening with an automatic shut-off clutch
    • Minimal heat build-up while operating the tool continuously. External torque adjustment scale
    • Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved.
    • Requires a transformer T-45BL or T-70BL (power supply).
    • Two-way Start System (Switchable between Lever Start and Push-to-Start)

Requires a transformer T-45BL or T-70BL (power supply).
