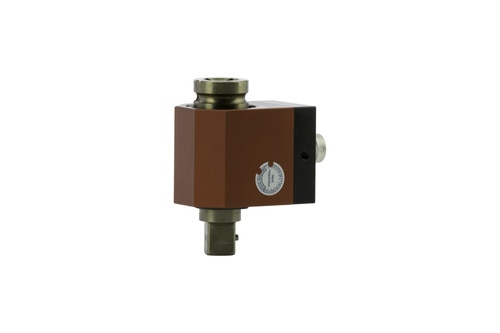

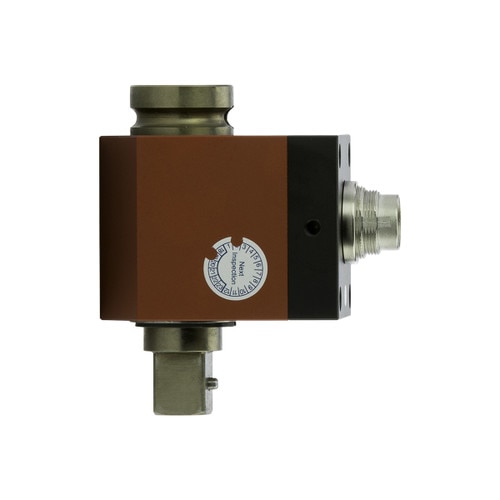

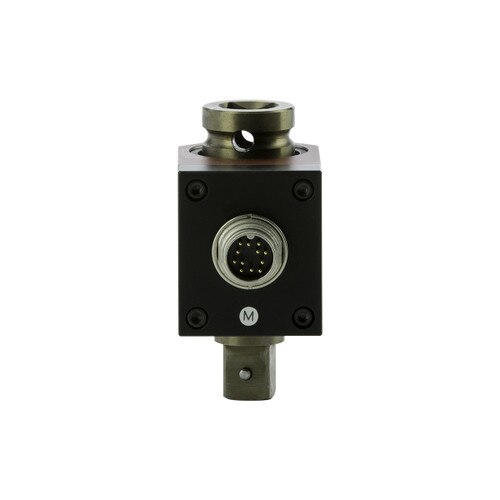

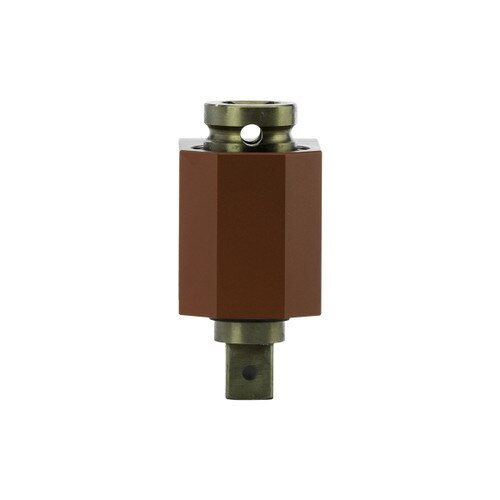

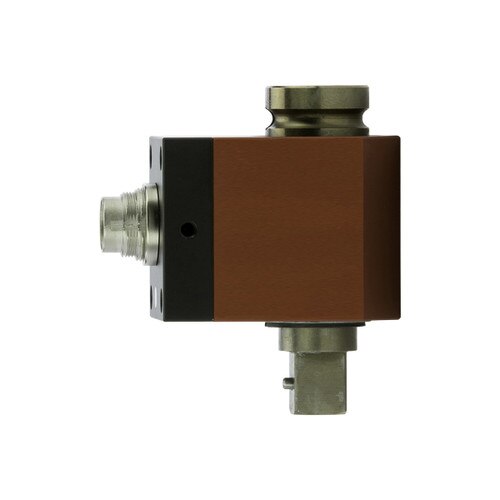

BLRTSX73F-A Rotary Torque Sensor
Item #: 170255
Certifications:
Calibration Options For This Product:
Add Calibration Certificate — $.00
Time Interval is required
T
F
T
Required Companion Items:
Specs
Model:
BLRTSX73F-A
Item #:
170255
American:
8 - 73 lbf.ft
S.I.:
10 - 100 N.m
Metric:
1.1 - 10.1 kgf.m
Input Drive:
1/2 F/Sq
Output Drive:
1/2 M/Sq
Tool Weight:
1.13 lb.
Tool Length:
4.2
Tool Width:
1.5
Tool Height:
2.3
Cal Cert Options Data Set:
Supplied with a Free ISO 17025 Certification of Calibration
The Mountz brushless rotary torque & angle sensors an ideal torque-measuring solution for applications where accuracy and reliability rank paramount. Can be used for testing real-time torque or for checking the breakaway torque (first movement) of a fastener.
Accuracy ± .2% of full scale
- Non-contact signal transfer and maintenance free.
- Angle Output: 2-channel quadrature, 360 pulses per rotation.
- Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
- The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.
- Compact design & bi-directional.
- For use with most power tools, high RPM tools, or rotational measurement applications.
- Features ARCII technology, an instant auto-recognition system of the BLRTSX-A connected to the PTT or LTT.
