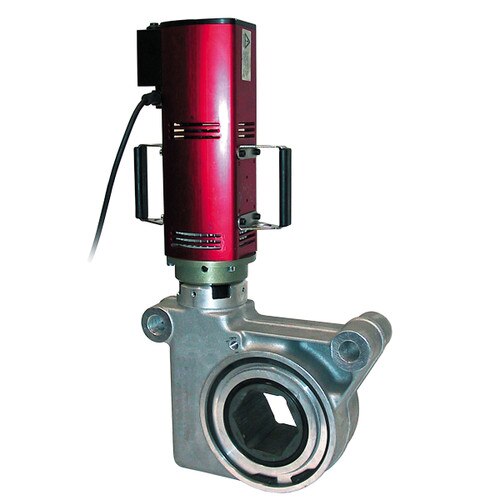

EF-R 80P Radial Gearing Electric Torque Multiplier

Item #: 210189
$19,625.00

This tool typically ships within 3 - 5 weeks. For further information, call 408-684-1442.

Radial gearing electric torque multipliers are designed for precision tightening and loosening of all heavy duty fasteni READ MORE

Calibration Options For This Product:

Add Calibration Certificate — $125.00

Time Interval is required

Item(s) successfully added to your cart.

T
F
T

Specs

Model:
EF-R 80P
Item #:
210189
American:
413 - 2787 lbf.ft
S.I.:
560 - 3780 N.m
Metric:
57.1 - 385.6 kgf.m
Hex Drive:
80mm
Tool Weight:
57.3 lbs.
Tool Length:
23.6
Tool Width:
9.1
RPM:
11
Radial gearing electric torque multipliers are designed for precision tightening and loosening of all heavy duty fastening applications. These multipliers are specially designed for heat plate exchanger applications. The torque multiplier shuts-off when the pre-set torque is achieved. It is non-impacting and operates at a smooth, continuous rotation.
Accuracy better than ± 5%
  • Compact design is safe, easy, and simple to handle.
  • Low profile radial head allows access where clearance is limited.
  • Specially designed for heat plate exchanger applications.
  • Continuously rotating hex drive is faster than hydraulics and more reliable than impacting tools.
  • Torque reaction is absorbed by means of a reaction stud.
  • Hex drive size reduces or enlarges with drop in hex adapters.
  • Universal AC Input (100-253V / 45-66 Hz) and features LED display.
