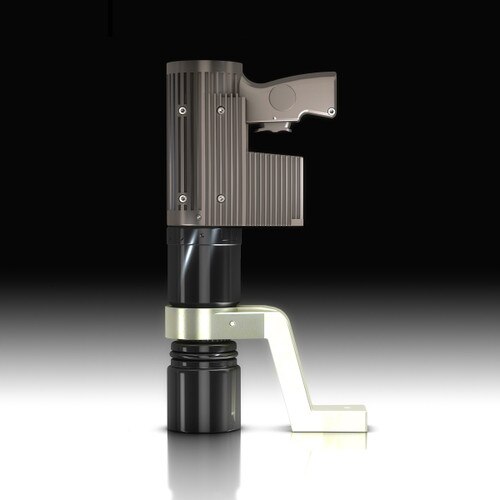

EFCip70 Electric Torque Multiplier

Item #: 210307
Certifications:
$20,525.00

This tool typically ships within 3 - 5 weeks. For further information, call 408-684-1442.

The easy-to-operate EFCip electric torque multipliers are designed for precision tightening and loosening of all heavy d READ MORE

Calibration Options For This Product:

Add Calibration Certificate — $125.00

Time Interval is required

Item(s) successfully added to your cart.

T
F
T

Specs

Model:
EFCip70
Item #:
210307
Drive Size:
1 1/2" Sq. Dr.
American:
443 - 2581 lbf.ft
S.I.:
600 - 3500 N.m
Metric:
61.2 - 357 kgf.m
Tool Weight:
29.1 lbs.
Tool Length:
16
RPM:
9
Spline Diameter:
72 mm
D2 Size (mm):
98
The easy-to-operate EFCip electric torque multipliers are designed for precision tightening and loosening of all heavy duty fastening applications. From tightening large industrial bolts used in windmill gearbox assemblies to bolting maintenance applications for oil & gas pipelines and rigs, the Mountz torque multipliers achieve precision torque in a quick, cost-efficient manner.
Accuracy better than ± 5%

  • Precision tightening and loosening of all heavy duty fastening connections.
  • Shuts-off when pre-set torque is achieved. Non-impacting and operates at a smooth, continuous rotation.
  • Increases speed and productivity, 5-10 times faster than slow ratcheting hydraulic wrenches. Less expensive than hydraulic wrenches.
  • Ergonomically safer than the harmful hammering of impact wrenches. Eliminates frequent and costly repairs of impact wrenches.
  • Standard models feature LED Display or Plus models feature LC Display.
  • Microprocessor controlled. The speed, frequency and torque correspond with built-in controller (no separate box needed).
  • Brushless motor design provides low maintenance.
  • Over-heat protection.
  • Universal AC Input (100-253V / 45-66 Hz).
  • The handle can free float or locks in set position.
  • Protected against dampness and spattered water, IP54 protection.
Note! All multipliers are supplied with a reaction foot
