Filter Regulator and Lubricator - 3/8 inch with gauge
Item #: 360038
Specs
Model:
Filter Regulator and Lubricator - 3/8 inch with gauge
Item #:
360038

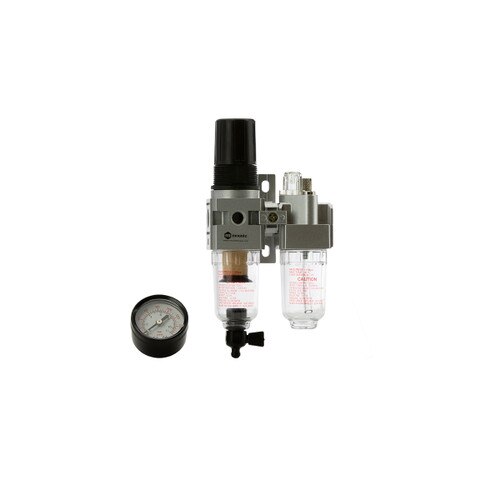

The Mountz filter-regulator with a lubricator. The unit is designed to remove solid and liquid contaminants from the air, while also providing controlled, consistent air pressure. The compact unit with embedded pressure gauge and manual drain.
- NPT Port Size: 3/8"
- Filter Element: 5μ
- Max. Input Pressure: 215 PSI
- Max. Output Pressure: 7 ~ 150 PSI
- Max. Flow: 105.9 cfm
- Operating Temp. Range: 5°F ~ 60°F
- Drain Capacity: 80 ml
- Oil Capacity: 150 ml
- Recommended Lubricants: ISO VG-32
