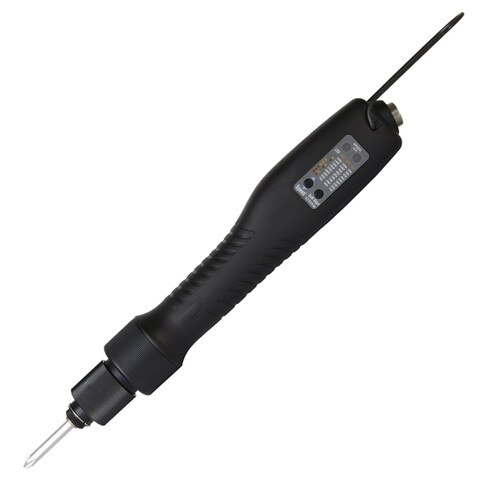

HF50NP-A ESD Brushless Electric Screwdriver

Item #: 145926
Certifications:
$2,095.00

This tool typically ships within 3 -4 weeks. For further information, call 408-684-1442.

The HF-Series brushless electric torque screwdriver provides precision torque control. The electric screwdriver ensures READ MORE

Calibration Options For This Product:

Add Calibration Service — $50.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Item(s) successfully added to your cart.

F
T
T

Required Companion Items:

Item #145774
$45.00
Item(s) successfully added to your cart.
Item #145824
$490.00
Item(s) successfully added to your cart.
Item #145903
$105.00
Item(s) successfully added to your cart.

Specs

Model:
HF50NP-A ESD
Item #:
145926
Drive Size:
1/4" F/Hex
American:
17.4 - 43.4 lbf.in
S.I.:
196.2 - 490.5 cN.m
Metric:
20 - 50 kgf.cm
Tool Weight:
28.6 oz.
Tool Length:
11.33
Minimum Adjustable RPM Range:
600
Maximum Adjustable RPM Range:
1050
Grip Dia:
1 1/2"
Requires Program Lock Key:
true
The HF-Series brushless electric torque screwdriver provides precision torque control. The electric screwdriver ensures quality and reduces overall assembly failures. These durable power tools feature a Swiss Maxon brushless motor design, which reduces the standard maintenance costs for electric screwdrivers. With almost no expendable parts and simple design, the brushless screwdriver life cycle is extended and maintains a clean working environment. The screwdriver requires less maintenance and part replacement and provides consistently reliable performance. Using a quality brushless electric screwdriver makes a safer world through accuracy and precision.
    • High-performance Swiss Maxon brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers. comfort.
    • Designed for high production environments. Minimal heat build-up even when tool is operated continuously.
    • Adjustable RPM setting on the tool. A selectable Soft Start mode from 0.2-0.6 seconds.
    • Over Heat Protection (OHP) and Over Current Protection (OCP) protect driver from damage or malfunction. Features a LED display that signals the tool status for the operator to view.
    • External torque adjustment scale.
    • Can be connected with the Scout Screw Counter.
    • Requires a HTC35 transformer (power supply).
    • All models are ESD designed and prevent the occurrence of electro static discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation and profitability.
Requires Program Lock Key (Item # 145774) in order to adjust RPM & Soft Start Settings. Program Lock Key must be plugged into the HTC35 Transformer.
