Legacy Product
This product has been replaced by: FG-40i IFR Preset Torque Screwdriver

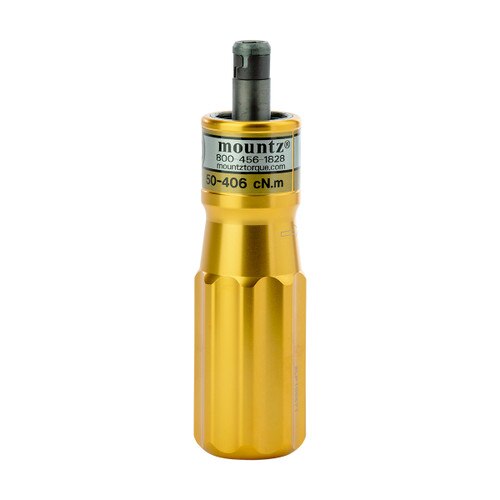

IFR Standard TLS0406 Preset Torque Screwdriver FH
Item #: 020476
Specs
Model:
IFR Standard
Item #:
020476
Drive Size:
1/4" F/Hex
American:
4.4 - 36 lbf.in
S.I.:
50 - 406 cN.m
Metric:
5.1 - 41 kgf.cm
Tool Weight:
9.9 oz.
Tool Length:
5
Handle Color:
Gold
The IFR Standard TLS0406 gold preset torque screwdriver product has been discontinued. You can access supporting product information from this page.
The design action of the standard TLS screwdrivers is such that when the tool reaches its pre-set torque value the mechanism disengages from the drive thus limiting the torque applied. Further rotation of the screwdriver handle resets the mechanism ready for the next torquing operation. The IFR models eliminate any small reaction during resetting.
The design action of the standard TLS screwdrivers is such that when the tool reaches its pre-set torque value the mechanism disengages from the drive thus limiting the torque applied. Further rotation of the screwdriver handle resets the mechanism ready for the next torquing operation. The IFR models eliminate any small reaction during resetting.
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).
- Preset torque limiting screwdriver (internally adjustable).
- Thrust bearings insure that the torque setting is independent of any end load applied by the operator.
- Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
- Precision radial ball clutch "slips-free" when the preset torque is reached preventing over-torquing.
- The IFR model is "impact free" when the cam mechanism resets.
- Screwdriver is torque limiting and calibrated in the CW direction only.
