LF120P-A ESD Brushless Electric Screwdriver

Item #: 145894
$730.00

This tool typically ships within 3 - 5 weeks. For further information, call 408-684-1442.

The LF-Series is an economical brushless electric torque screwdriver. The durable power tool features a Swiss Maxon brus READ MORE
Model:
LF120P-A ESD
Item #:
145894
Drive Size:
1/4" F/Hex
American:
2.6 - 10.4 lbf.in
S.I.:
29.4 - 117.6 cN.m
Metric:
3 - 12 kgf.cm
Tool Weight:
15.5 oz.
Tool Length:
9
RPM:
1000
Grip Dia:
1 1/2"

Item(s) successfully added to your cart.

Please select your calibration option below before adding to cart

Add Calibration Service — $35.00

Please select an option:
  ADD SERVICE
  NO SERVICE NEEDED

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Please select an option:
  ADD CERTIFICATE
  NO CERTIFICATE NEEDED

Time Interval is required

F
T
T

You will also need

Item #145870
$195.00
Item(s) successfully added to your cart.
Item #145754
$290.00
Item(s) successfully added to your cart.

Product Details

The LF-Series is an economical brushless electric torque screwdriver. The durable power tool features a Swiss Maxon brushless motor, which reduces the standard maintenance costs for electric screwdrivers. The electric screwdriver is ESD certified, ensuring less than 1 Ohm at the bit tip. ESD management in power tools ensures product quality, cost savings and a reduction in overall ESD failures. Manufacturing engineers involved with microelectronic products are aware of the importance of controlling Electrostatic Discharge (ESD) failures. Lapses in preventing the occurrence of electrostatic discharge can affect production yields, manufacturing costs, product quality, product reliability, reputation and profitability.

Product Benefits

  • High performance Swiss Maxon brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers. comfort.
  • Designed for high production environments. Minimal heat build-up even when tool is operated continuously.

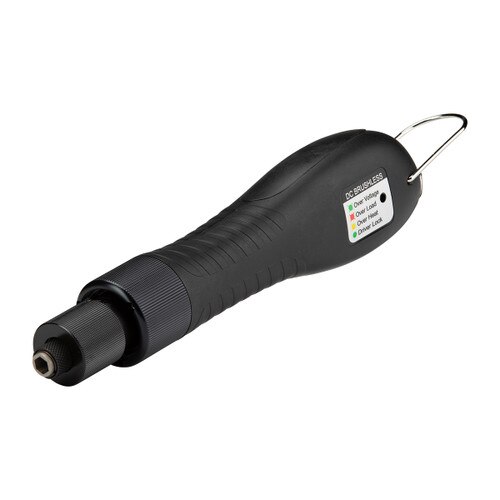

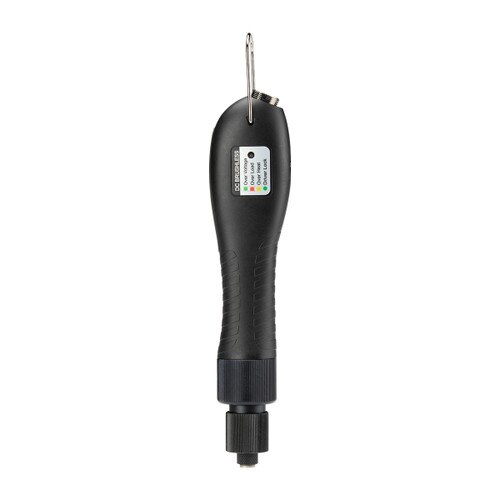

  • Over Heat Protection (OHP) and Over Current Protection (OCP) protect driver from damage or malfunction. Features a LED display that signals the tool status for the operator to view.
  • External torque adjustment scale.
  • Can be connected with the Scout Screw Counter.
  • Requires a STC 40 or FT-30D transformer (power supply).
  • All models are ESD designed and prevent the occurrence of electro static discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation and profitability.
Requires a STC 40 or FT-30D transformer (power supply).
