Legacy Product
This product has been replaced by: FG-8i Preset Torque Screwdriver

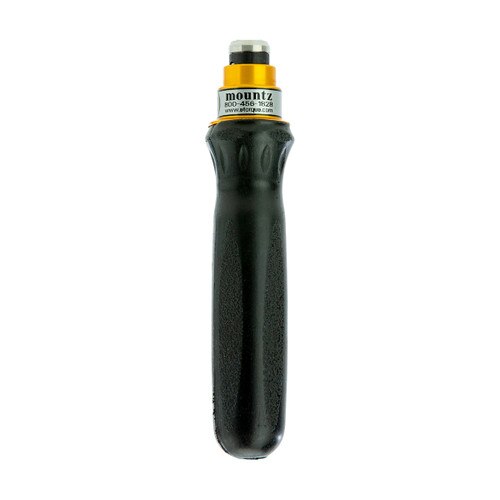

PSE25 Preset Torque Screwdriver

Item #: 020186
The PSE25 preset torque screwdriver product has been discontinued. You can access supporting product information from th READ MORE
Model:
PSE25
Item #:
020186
Drive Size:
1/4" F/Hex
American:
5.7 - 35 ozf.in
S.I.:
4 - 25 cN.m
Metric:
0.4 - 2.5 kgf.cm
Tool Weight:
3.2 oz.
Tool Length:
4.6
The PSE25 preset torque screwdriver product has been discontinued. You can access supporting product information from this page.
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).
  • Preset torque limiting screwdriver (internally adjustable).
  • Thrust bearings insure that the torque setting is independent of any end load applied by the operator.
  • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
  • Precision radial ball clutch "slips-free" when the preset torque is reached preventing over-torquing.
  • Bi-directional operation and is calibrated in either the CW or CCW direction.
  • ESD compliant.
  • Ergonomic rubber hand grip.
