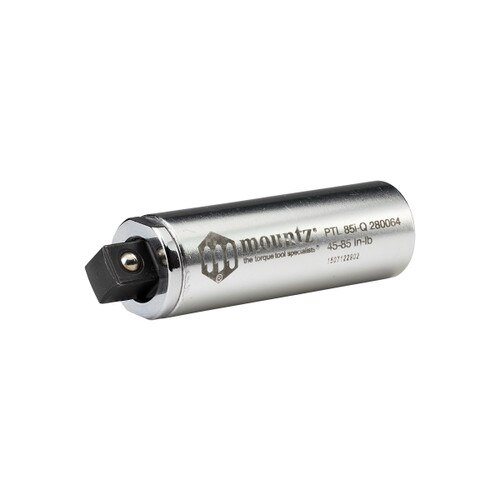

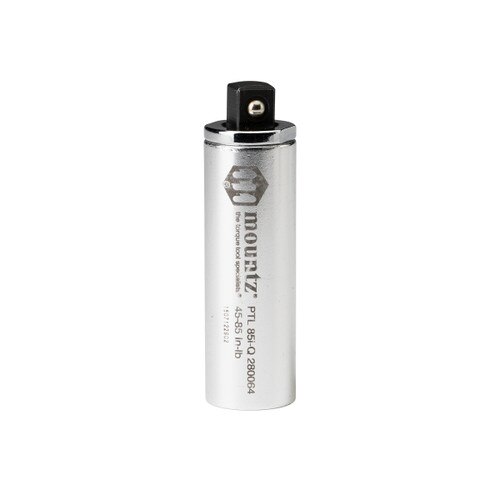

PTL 85i-Q Preset Torque Limiter

Item #: 280064
$80.00
In Stock
Designed to be used in-line to limit torque for hand (static) applications. Can also be used as an overload protection d READ MORE

Calibration Options For This Product:

Add Calibration Service — $20.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Item(s) successfully added to your cart.

F
T
T
Model:
PTL 85i-Q
Item #:
280064
American:
45 - 85 lbf.in
S.I.:
508.5 - 960.5 cN.m
Metric:
51.7 - 97.7 kgf.cm
Input Drive:
3/8 F/Sq
Output Drive:
3/8 M/Sq
Tool Weight:
3.3 oz.
Tool Length:
3
Designed to be used in-line to limit torque for hand (static) applications. Can also be used as an overload protection device on most applications where measuring a static overload is needed. Provides accurate process control as the unit prevents a fastener or bolt from being under and over tightened.
Repeatability within +/- 6% of pre-set torque value.
  • Various models that range from 1 to 85 lbf.in.
  • Designed to be used in-line to limit torque for hand (static) applications. For low torque applications.
  • Can also be used as an overload protection device on most applications where measuring a static overload is needed.
  • The rotary clutch mechanism slips free when the pre-set torque value is reached, eliminating overtightening. The mechanism then automatically resets.
  • Pre-set using a torque analyzer.
  • Bi-directional operation and are calibrated in either the CW or CCW direction.
  • Lighweight and easy-to-use.
  • Non-length dependent. Bi-directional operation and are calibrated in either the CW or CCW direction.
WARNING! Do not use with a power tool.
