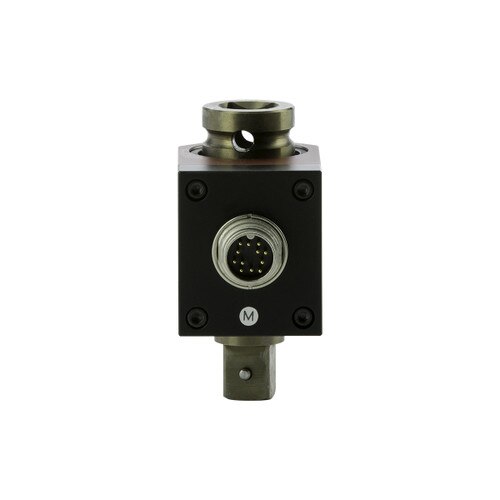

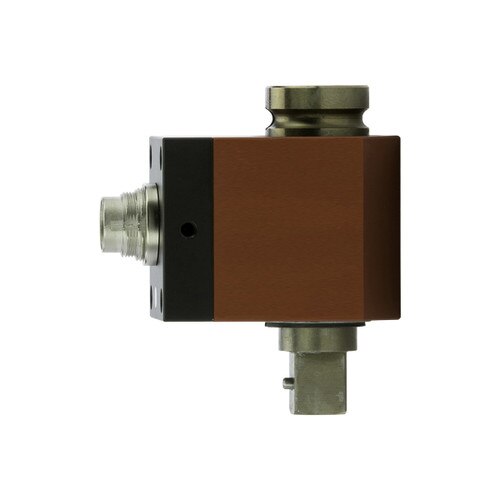

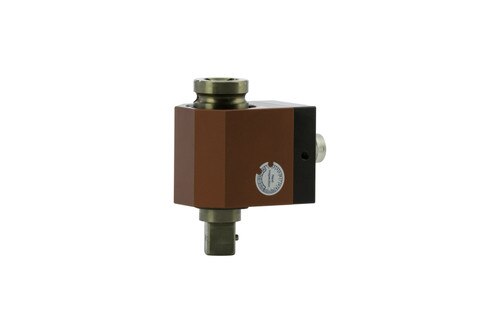

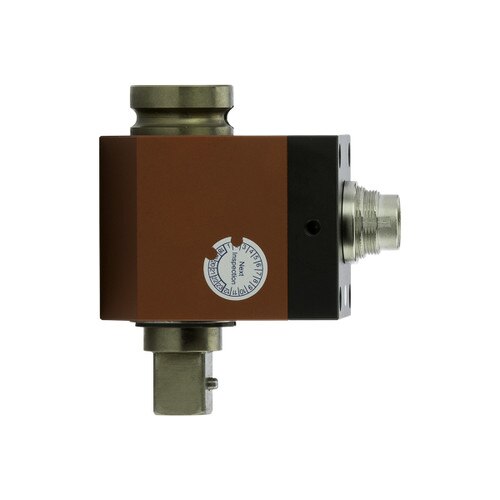

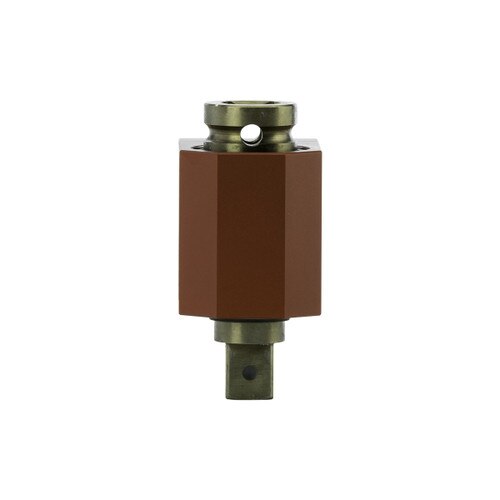

RTSX100F-A Rotary Torque Sensor

Item #: 170222
Certifications:
$5,650.00
In Stock
The Rotary Torque & Angle Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the as READ MORE

Calibration Options For This Product:

Add Calibration Certificate — $.00

Time Interval is required

Item(s) successfully added to your cart.

T
F
T

Required Companion Items:

Item #072000
$415.00
Item(s) successfully added to your cart.

Specs

Model:
RTSX100F-A
Item #:
170222
American:
10 - 100 lbf.ft
S.I.:
13.6 - 135.6 N.m
Metric:
1.4 - 13.8 kgf.m
Input Drive:
1/2 F/Sq
Output Drive:
1/2 M/Sq
Tool Length:
4
Tool Width:
1.5
Tool Height:
2.3
Cal Cert Options Data Set:
Supplied with a Free ISO 17025 Certification of Calibration
The Rotary Torque & Angle Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly application. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to fastener or bolt.
Accuracy ± .25% of full scale

Accessories

Torque Analyzers
PTT
LTT

Cables for connecting RTSX-A to Torque Analyzers
PTT
LTT
  • Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
  • Angle output: 2-channel quadrature, 360 pulses per rotation.
  • Bi-directional.
  • For use with most power tools and rotational measurement applications.
  • Features ARC II technology, an instant auto-recognition system of the RTSX-A connected to the PTT and LTT.
This is the stand alone accuracy statement for the RTSX-A torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (PTT or LTT).

WARNING! Not recommended for impact wrenches.
