Spring RDA-50i Run Down Adapter

Item #: 070605
$180.00
In Stock
The spring run down adapters are designed only for EZ-TorQ analyzer, These units provide consistent and reliable torque READ MORE

Specs

Model:
Spring RDA-50i
Item #:
070605
American:
5 - 50 lbf.in
S.I.:
56.5 - 565 cN.m
Metric:
5.8 - 57.6 kgf.cm
Input Drive:
6mm Hex
Output Drive:
17mm Hex

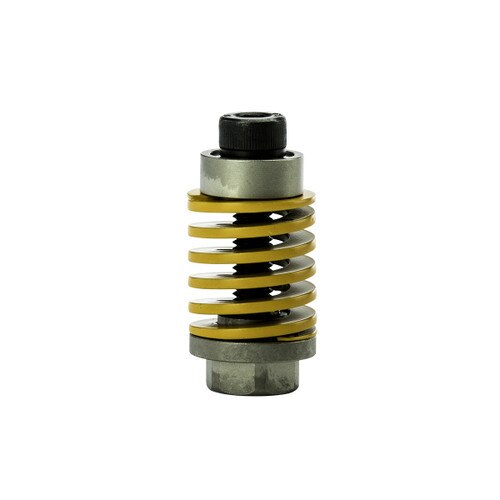

The spring run down adapters are designed only for EZ-TorQ analyzer, These units provide consistent and reliable torque readings for use with power driven torque control tools. The RDA reduces the impact and irregular peaks that cause poor repeatability. The run down adapter is mounted in-line between the tool drive and transducer.
  • Designed to provide consistent and reliable torque readings for use with power driven torque control tools.
  • Adapter is mounted in-line between tool drive and transducer.
  • Compact size and lightweight.
  • Operates in clockwise direction only. After each run down, the RDA should be completely backed-up.
  • Compatible with only the EZ-TorQ torque analyzer.
