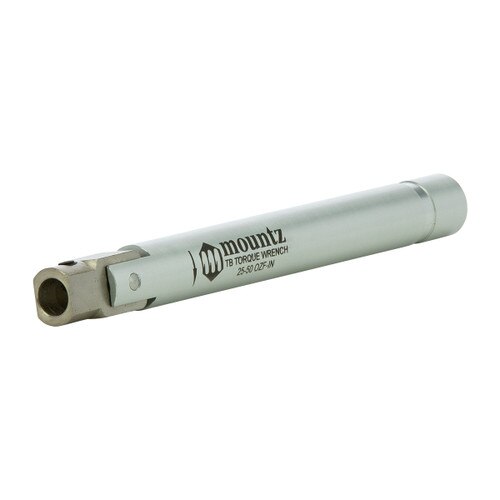

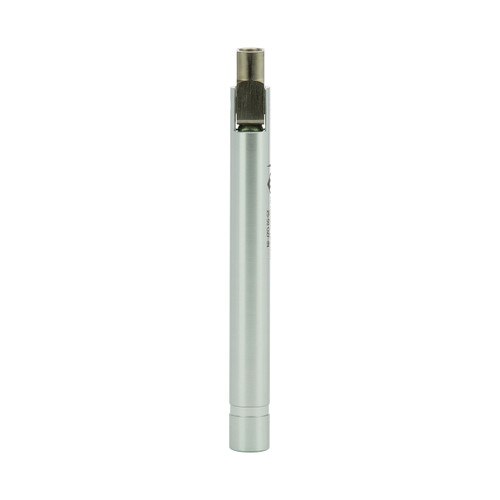

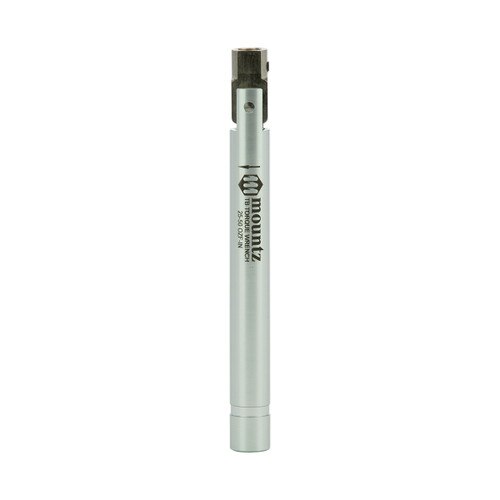

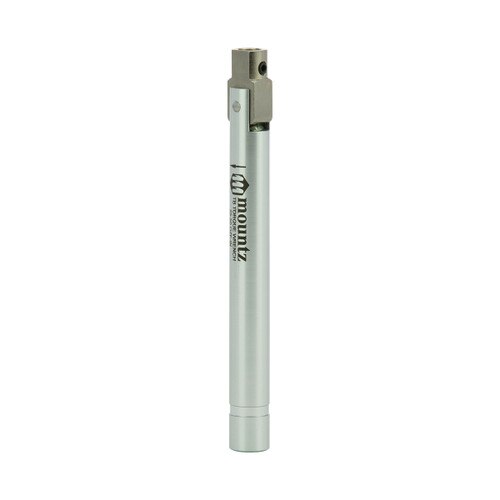

TBIH Preset Break-Over Wrench - Silver

Item #: 067999-A
$135.00

This tool typically ships within 3 weeks. For further information, call 408-684-1442.

The TBIH is a small torque wrench ideal for applications with limited space. The flexible preset wrench can adapt to dif READ MORE

Calibration Options For This Product:

Add Calibration Service — $25.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Note: If you'd like to engrave multiple items with different engraving text you will need to add them to the cart individually. Engraved tools and engraving fees are non-refundable.

View Engraving Location

Item(s) successfully added to your cart.

F
T
T

Specs

Model:
TBIH Wrench Silver
Item #:
067999-A
Drive Size:
TBIH End
American:
25 - 50 ozf.in
S.I.:
17.7 - 35.3 cN.m
Metric:
1.8 - 3.6 kgf.cm
Tool Length:
5.5
Handle Color:
Silver
The TBIH is a small torque wrench ideal for applications with limited space. The flexible preset wrench can adapt to different fastening applications as it is compatible with varying head options like an open end, box end, flare end, hex key end, or a ratchet head. Preset torque wrench improves productivity by consistently applying the correct torque value to each fastener. The preset wrench is ideal for fastening applications where operators repeatedly assemble parts at the same torque setting.

The TBIH breaks over once it achieves its preset torque setting, signaling the operator to stop applying torque to the fastener or bolt. The wrench improves the fastening process by reducing either over or under-tightening risk.
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).

Accessories

First select the model (handle color and torque range) Then select a head. The flexible TBIH wrench can adapt to a variety interchangeable head fittings.


Open End Head
Box End Head
Hex Key Head
Flare End Head
Ratchet Head

    • Torque limiting wrench improves control of the tightening process.
    • Reduces the risk of both over and under-tightening.
    • The break-over mechanism provides a visual indicator of achieving torque setting.
    • Preset torque wrench improves productivity by consistently applying the correct torque value to each fastener. The preset wrench is ideal for fastening applications where operators repeatedly assemble parts at the same torque setting
    • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
    • Delivers repeatability, traceability and precision for tightening applications.
    • Six different colored aluminum handles allow for color-coding of specific torque values in production areas.
    • Small and lightweight. Ideal for fastening applications with limited space.
    • Interchangeable end fitting design—selectable head types and sizes (open end, box head, hex key, fixed square drive heads and ratchet head).
    • Interchangeable heads are manufactured with a common centerline so the torque setting remains the same when head sizes are changed.
Torque is easily adjusted by removing the cap and turning the adjustment screw with the 3/16” Hex Key (supplied). Then verify torque output using a torque analyzer.
