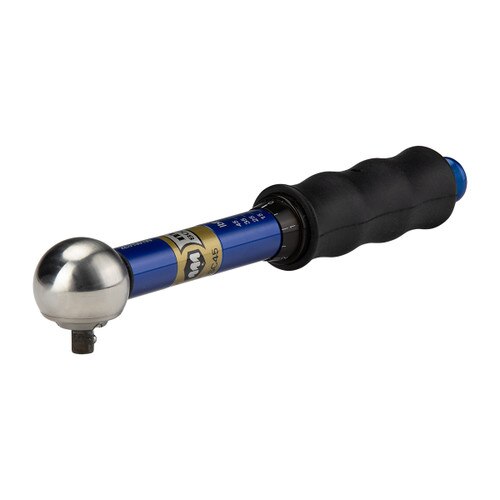

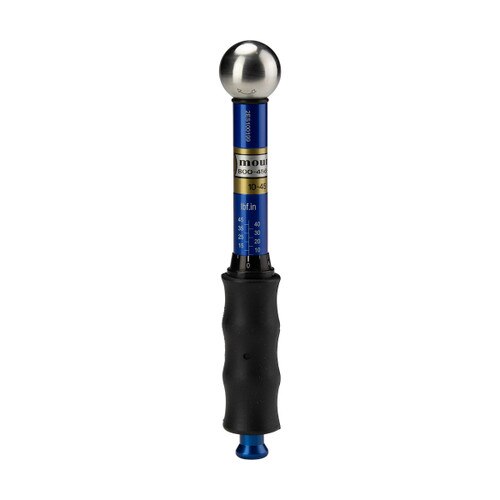

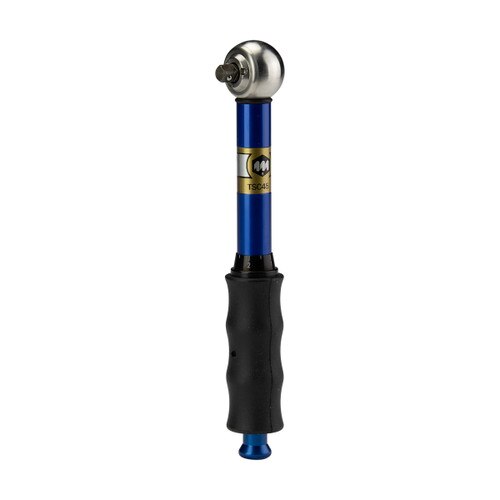

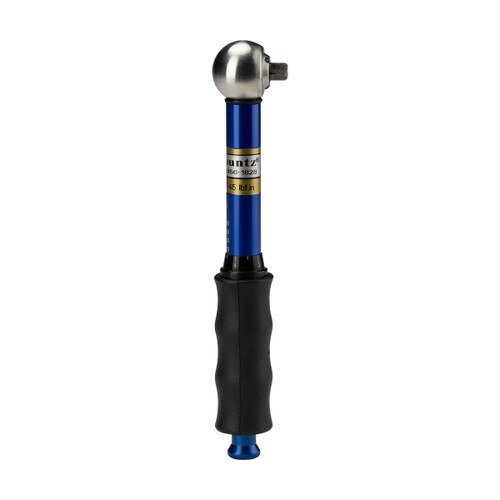

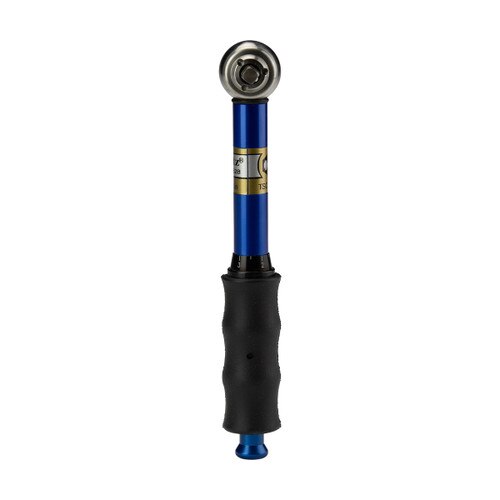

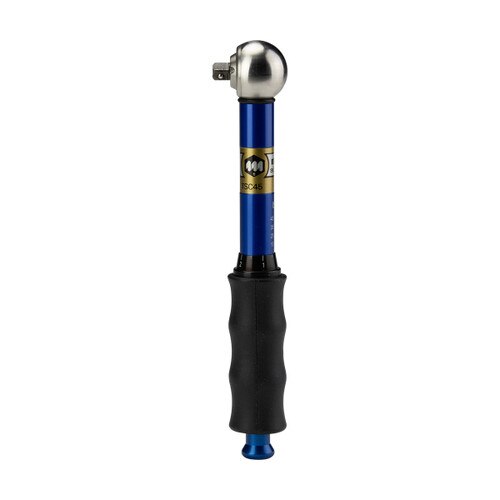

TSC45 Adjustable Cam-Over Wrench

Item #: 020340
$549.00
TSC is an adjustable cam-over torque wrench that's ideal for maintenance and production applications where over-torque c READ MORE
Model:
TSC45
Item #:
020340
Drive Size:
1/4" Sq. Dr.
American:
10 - 45 lbf.in
S.I.:
-
Graduation Scale (American):
0.5
Tool Weight:
8.3 oz.
Tool Length:
7.68

Item(s) successfully added to your cart.

Please select your calibration option below before adding to cart

Add Calibration Certificate — $35.00

Please select an option:
  ADD CERTIFICATE
  NO CERTIFICATE NEEDED

Time Interval is required

T
F
T

Product Details

TSC is an adjustable cam-over torque wrench that's ideal for maintenance and production applications where over-torque conditions are not tolerated.
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).

Product Benefits

  • When the preset torque is reached, the unique cam action provides high repeatability while eliminating overtorquing.
  • Anodized quality finish with stainless steel head.
  • Comfortable rubber hand grip.
  • Slim profile and light weight.
  • Non-length dependent.
  • ESD compliant.
  • Features an externally adjustable micrometer scale and easy-to-use positive locking adjustment system.
