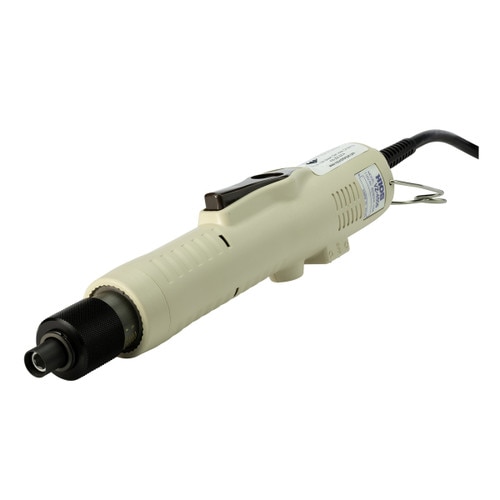

VZ4506 Electric Screwdriver

Item #: 144378
$1,455.00

This tool typically ships within 7 weeks. For further information, call 408-684-1442.

The HIOS VZ-Series electric screwdriver is designed to plug directly into a power outlet and does not require a separate READ MORE

PRODUCT SPECIFICATIONS

Model:
VZ4506
Item #:
144378
Drive Size:
1/4" F/Hex
American:
8.8 - 39 lbf.in
S.I.:
100 - 450 cN.m
Metric:
10 - 45 kgf.cm
Tool Weight:
24 oz.
Tool Length:
11
RPM:
600
Grip Dia:
1 1/2"
110V:
true

Item(s) successfully added to your cart.

Please select your calibration option below before adding to cart

Add Calibration Service — $35.00

Please select an option:
  ADD SERVICE
  NO SERVICE NEEDED

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Please select an option:
  ADD CERTIFICATE
  NO CERTIFICATE NEEDED

Time Interval is required

F
T
T

Product Details

The HIOS VZ-Series electric screwdriver is designed to plug directly into a power outlet and does not require a separate power supply unit. Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved. Operates on a duty cycle of 0.5 seconds on and 3.5 seconds off.

Product Benefits

  • Various models that range from 3.5 - 39 lbf.in
  • Plugs directly into a power outlet. Separate power supply not required
  • Positive auto shut-off.
  • Ergonomic hand grip.
  • Push-to-start and Lever operated styles available.
  • Duty cycle tool.
  • 120 VAC, 10 foot power cord.
  • External torque adjustment scale.
