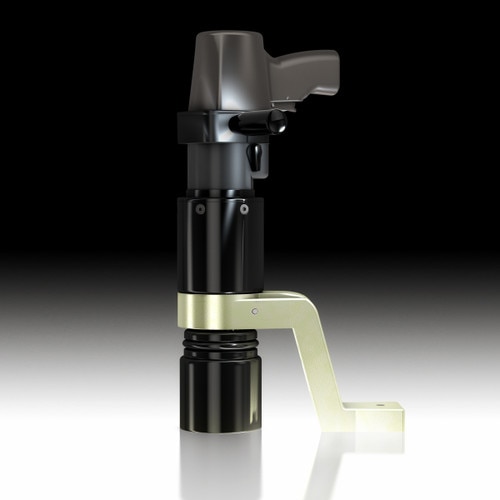

CLS2/100 Pneumatic Torque Multiplier

Item #: 213001
$10,965.00
In Stock
The CLS 2/100 pneumatic torque multiplier provides precision tightening and loosening of all heavy duty fastening connec READ MORE
NOTE: Requires Companion Items View

Calibration Options For This Product:

Add Calibration Certificate — $125.00

Time Interval is required

Item(s) successfully added to your cart.

T
F
T

Required Companion Items:

LCU-2 Lubro Control Unit
Item #061429
$1420.00
Item(s) successfully added to your cart.

Specs

Model:
CLS2/100
Item #:
213001
Drive Size:
3/4" Sq. Dr.
American:
88 - 830 lbf.ft
S.I.:
120 - 1125 N.m
Metric:
12.2 - 114.7 kgf.m
Tool Weight:
15 lbs.
Tool Length:
13
RPM:
12
Spline Diameter:
41 mm
D2 Size (mm):
85
The CLS 2/100 pneumatic torque multiplier provides precision tightening and loosening of all heavy duty fastening connections. The torque multiplier shuts-off when preset torque is achieved. It's a non-impacting tool and operates with smooth, continuous rotation. The torque multiplier increases speed and productivity, as it is faster than a hydraulic wrench and is less expensive.
Accuracy better than ± 5%

Related Products

  • Compact design is safe, easy, and simple to handle.
  • Precision tightening and loosening of all heavy duty fastening connections.
  • Shuts-off when pre-set torque is achieved. Non-impacting and operates at a smooth, continuous rotation
  • Torque adjustment and control is regulated by the Lubro Control Unit (LCU) via the air supply.
  • Multiplier increases speed and productivity, as it is faster than a hydraulic wrench and is less expensive. Eliminates the cumbersome set up time and slow ratcheting process of hydraulic wrenches.
  • Ergonomically safer than the harmful hammering of impact wrenches. Eliminates the frequent costly repairs of impact wrenches.
  • Heavy-duty gear box.
  • Two speed model features manual two-speed gearbox for controlled screw tightening.
All multipliers are supplied with a reaction foot. All Pneumatic Torque Multipliers should use a high quality air filter regulator. Torque setting is obtained by air pressure. Each Pneumatic Multiplier is supplied air-flow chart. Maximum decibel rating during operation is 78 dB(A).
