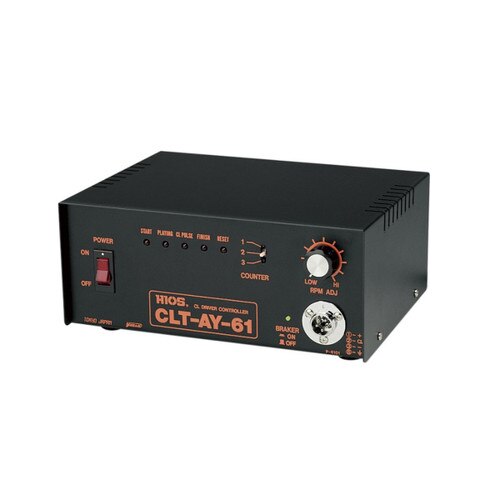

CLT-AY-61 Transformer
Item #: 144214
Specs
Model:
CLT-AY-61
Item #:
144214
Tool Weight:
9.25 lbs.
Tool Length:
7
Tool Width:
9.125
Tool Height:
4.125
Maximum Output:
4A
Output VDC:
17/30V
Input VAC:
120V
Fuse Size:
2A
The CLTAY-61-120 operates with select CLF-Series robotic electric screwdrivers. It is a single tool automation controller. Requires a signal from another source to start the driver. Equipped with terminal block connections for stop & start reset signals. Variable speed control from 17 - 30 VDC.
- Provides automation control functions for fastening applications.
- For use with the CLF-Series robotic electric screwdrivers only.
- Requires a signal from another source to start the driver.
- Equipped with terminal block connections for stop & start reset signals.
- Variable speed control from 17 - 30 VDC.
Operates with Robotic Electric Screwdriver Models:CLF3000 - 7000
