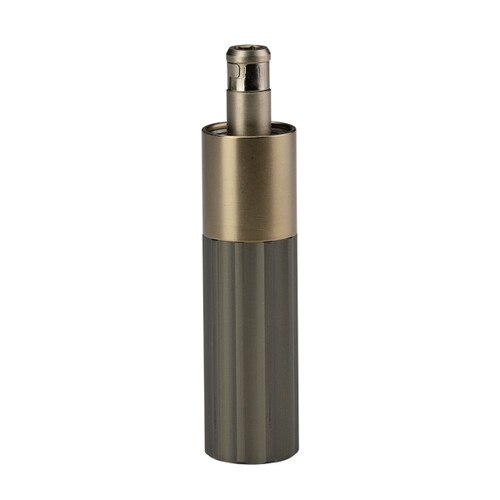

CRS100-0135FH Clean Room Torque Screwdriver

Item #: 020321
$465.00
In Stock
CRS100-0135FH is a clean room preset torque limiting screwdriver (internally adjustable). The tool is for stringent cle READ MORE

Calibration Options For This Product:

Add Calibration Service — $20.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Item(s) successfully added to your cart.

F
T
T
Model:
CRS100-0135FH
Item #:
020321
Drive Size:
1/4" F/Hex
American:
1.2 - 12 lbf.in
S.I.:
14 - 135 cN.m
Metric:
1.4 - 13.7 kgf.cm
Tool Weight:
7.4 oz.
Tool Length:
4.3
CRS100-0135FH is a clean room preset torque limiting screwdriver (internally adjustable). The tool is for stringent clean room manufacturing applications. Built with a cam-over design, the accurate torque screwdriver prevents a fastener or bolt from being over-torqued. When the torque screwdriver reaches the pre-set torque value the internal mechanism disengages from the drive thus limiting the torque applied. Using a quality torque screwdriver ensures that proper torque is being applied and maintains requirements associated with ISO quality standards.
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).
    • Exceeds Class 100 clean room standards.
    • Special seals prevent contamination.
    • External components are high-grade stainless steel to inhibit any form of corrosion.
    • Special microfiltered internal lubricant.
    • Aluminum handle sealed with PTFE impregnated anodized finish.
    • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
Note! IFR CRS Models (Impact Free Resetting) - The design action of the standard CRS cammed screwdrivers is such that when the tool reaches its pre-set torque value the mechanism disengages from the drive thus limiting the torque applied. Further rotation of the screwdriver handle resets the mechanism ready for the next torquing operation. The IFR models eliminates any small reaction during resetting.
