DPC-Touch Posi-Control System V2

Item #: 260290
$6,450.00
In Stock
The DPC-Touch Posi-Control device works in conjunction with the position control torque arm. Together the two units are READ MORE
NOTE: Requires Companion Items View

Required Companion Items:

SMPS Adapter (24VDC 1A)
Item #310102
Request a Quote

Specs

Model:
DPC-Touch Posi-Control System V2
Item #:
260290
Tool Weight:
1.2 lbs.
Tool Length:
1.5
Tool Width:
8
Tool Height:
5
The DPC-Touch Posi-Control device works in conjunction with the position control torque arm. Together the two units are an error-proofing system that detects and eliminates costly screw-fastening errors during the assembly process. Sequence-based fastening is critical to proper process control and a quality fastening result for torque applications. A position control torque arm system ensures a power tool runs down the fasteners in the proper sequence. The encoder sends arm positioning data to the posi-control device where it saves the data and the time it took to complete the rundown. During subsequent fastening with the positioning torque arm, the posi-control device will not clear a sequence unless it has been completed within the set parameters. It’s like putting the eyes and ears of a quality control manager where they are needed most – right at each work station.

Accessories

Cable Chart
For Connecting Tools to the DPC-Touch Posi-Control System.

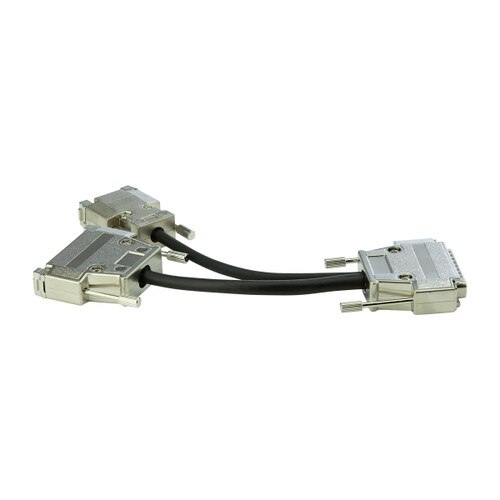

  • ET-30D, FT-30D, STC-30 or STC-40: (Item # 14-PELZ911)
  • HD-Series, SD-Series & SHC-Series: (Item # 310165) - Cable 25P I/O (DPC Touch Posi-Control to HDC v2.1 & SDC v2.1 Controllers)
  • MD-Series: (Item # 310162) - Cable 44P I/O (DPC-Touch to MDC Controller-DB25(M) and PLC-DB25(M)

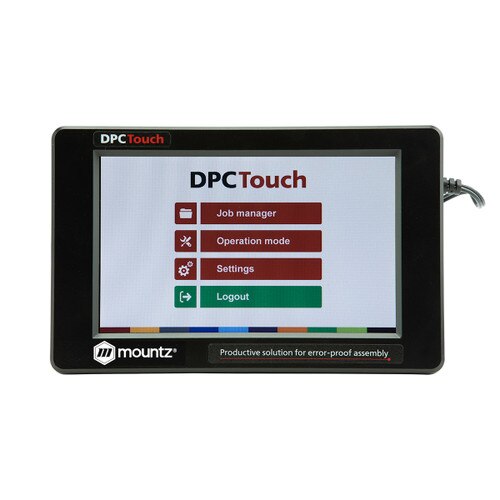

    • Full touch screen programming.
    • Programmable sequence operation.
    • Traceability and error-proofing. Real-time monitoring.
    • Safeguard against fastening failures by ensuring that every screw is in the correct location at the right torque.
    • Detects - cross threading, omissions, unfinished rundowns and cycle complete.
    • Compatible with DC Controlled Tools, torque electric screwdrivers (with transformers or controllers), air tools (ported).
    • Password protection and mountable.
    • Can interface with most intelligent driver systems that store  multiple torque programs and has external digital I/O control.
    • Quick and easy to setup. Self teaching and automation program mode.
    • Programmable: Positioning Tolerance, Min. and Max. time for Poka Yoke control (automatic or manual) and 99 memory points
    • Programmable “Job Manager” interface makes it easy to create, save and recall saved jobs. (Maximum number of jobs is 255.
    • Detection of sequence fastening error and buzzer alert. (Position Ok, Alarm and Cycle complete signals.).
    • Screw count display.

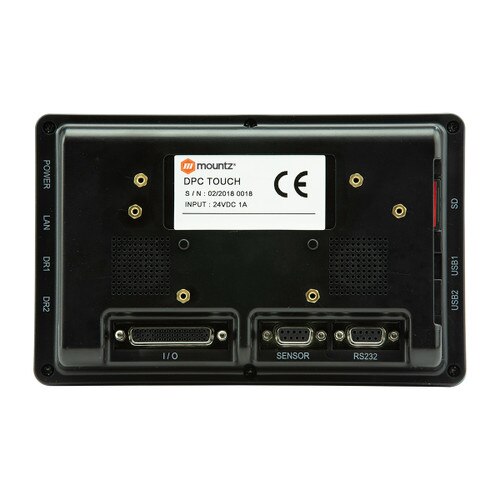

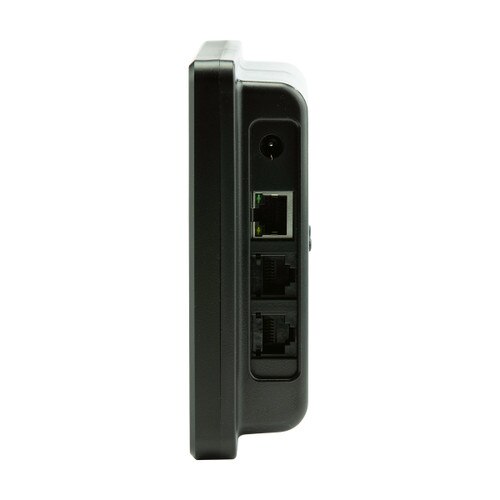

    • Inputs and Outputs for machine & PLC interface for line control.
    • The touch posi-control device is compatible with EZ-Glider position control torque arms (Articulated & Telescoping models)
    • Screen: 7” LCD Touch screen, 800 x 480 px
    • Inputs 24V: 12 w/assignable functions
    • Outputs 24V: 12 w/assignable functions.
    • Total Job Memory: 255
    • Total positions memory: 255 jobs x 255 steps x 99 positions per fastening step max 100steps of the  same type in one job
    • Total Encoder Capacity: 4
Compatibility with Automation Devices

Open job structure allows set up for customized logical sequences of fastenings, messages and I/O devices.

  • Part In/Out Management
  • Proximity Sensor
  • Pick-to-Light Sensors
  • Bit / Socket Tray Selector
  • Bar Code Scanner
  • Signal Tree Management
  • Screw Presenters
  • Password Protection
