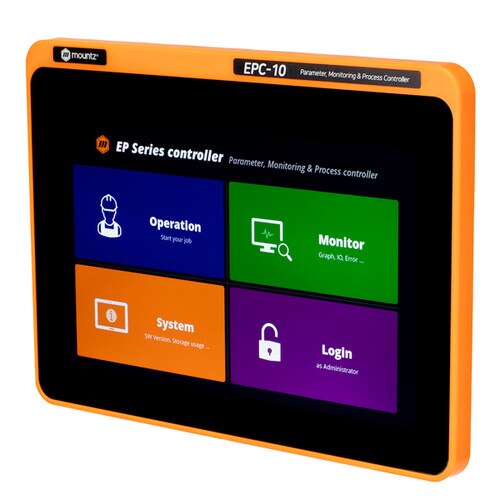

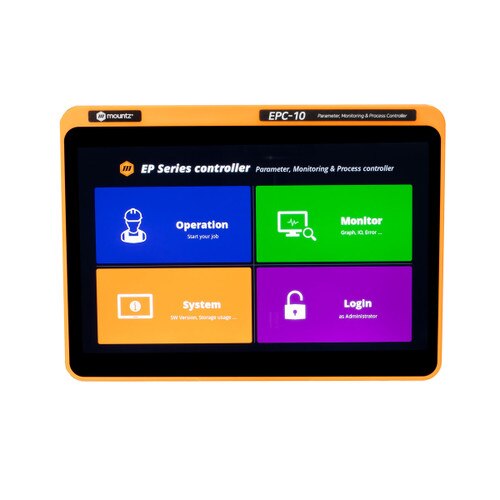

EPC-10 Controller

Item #: 313005
Certifications:

This tool typically ships within 4 - 5 weeks.

The EPC-10 wireless controller operates with only the EPT-Series Transducerized Smart Cordless Screwdrivers. The Job READ MORE

Request a Quote

Specs

Model:
EPC-10 Controller
Item #:
313005
Tool Weight:
7.8 lbs.
Tool Length:
7.75
Tool Width:
11.75
Tool Height:
3.125
Input VAC:
100 ~240V, 50–60Hz,0.35A

The EPC-10 wireless controller operates with only the EPT-Series Transducerized Smart Cordless Screwdrivers. The Job Manager function is a process control interface that makes it easy to create, save and recall visual assembly instructions for an operator to use. The controller features an I/O interface for communication with external devices such as PLC. Collect and store fastening data for up to 8 cordless screwdrivers.

MountzCom III Software

Software Download

For any technical support needs, please contact us.

    • Able to connect up to 8 EPT cordless screwdrivers
    • Program or verify parameter settings for cordless screwdrivers
    • Job Manager interface makes it easy to create, save and recall visual assembly instructions for an operator to use.
    • Fastening Quality Control: OK/NG monitoring of screw fastening by preset pattern of angle and/or time
    • Display fastening data in real-time. Automatically saves and stores data
    • Remote tool control
    • Screw counting
    • Front panel 10.1" Color LCD with touch screen

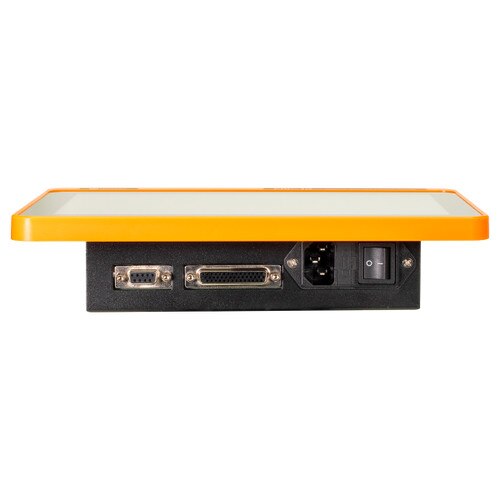

    • 16 Input & 16 Output flexible I/O (25P D-Sub

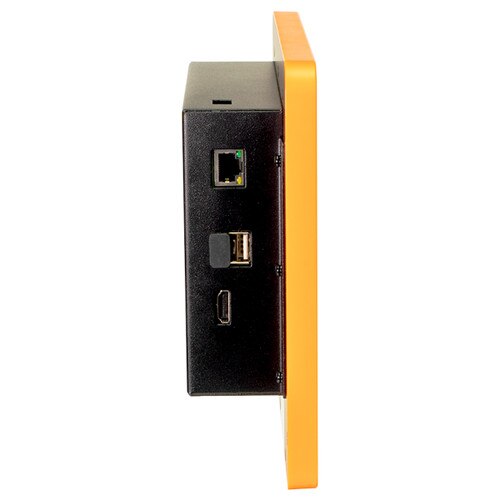

    • Communication 1 x RS232C, 1 x Ethernet, WiFi
    • Protocol: Modbus
    • 4.0 MES system ready
    • Mini SD Card data memory slot (memory card included)
    • Mounting bracket included
    • Supports barcode scanner
    • Supports file transfer protocol (FTP) server
    • Clean room compliant (ISO14644-1 2015 Class 5)
Operates with Cordless Screwdriver Models: EPT-Series
