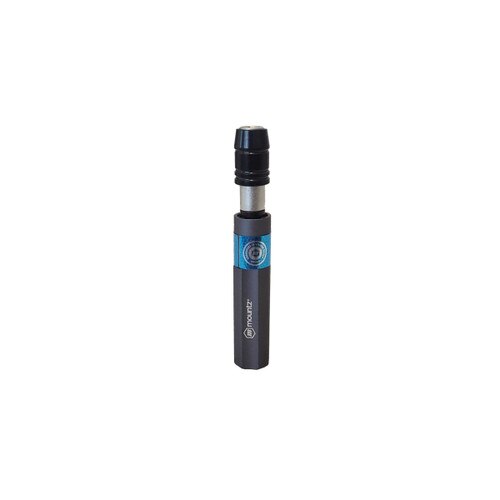

FG-25z Preset Torque Screwdriver with Blue Label

Item #: 076705
Back
$360.00
$360.00
In Stock

The FG-25z Preset Torque Screwdriver is designed for micro fastening applications where precision and consistency are READ MORE

Calibration Options For This Product:

Add Calibration Service — $45.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Note: If you'd like to engrave multiple items with different engraving text you will need to add them to the cart individually. Engraved tools and engraving fees are non-refundable.

View Engraving Location

Item(s) successfully added to your cart.

F
T
T

Specs

Model:
FG-25z
Item #:
076705
Drive Size:
1/4" F/Hex
American:
3 - 25 ozf.in
S.I.:
2 - 17.7 cN.m
Tool Weight:
2.8 oz.
Tool Length:
4.1
Label Color:
Blue

The FG-25z Preset Torque Screwdriver is designed for micro fastening applications where precision and consistency are critical. Engineered with Mountz cam-over technology, the screwdriver automatically releases once the preset torque is reached, preventing both under-tightening and over-tightening, which can lead to assembly defects, damaged fasteners, or product failures.

Ideal for repetitive assembly operations, the preset torque screwdriver delivers the same accurate torque setting every cycle, regardless of operator skill level. The ergonomic handle design fits comfortably in the user’s hand, reducing fatigue during extended production runs, while the compact size allows easy access in tight or confined assembly spaces.

Preset micro torque screwdrivers are optimized for applications where the same torque value is repeatedly required. The FG-25z is internally adjustable using a hex key and torque tester, allowing quality managers or technicians to securely preset the desired torque value without an external adjustment scale. If production requirements change, the tool can be recalibrated and reset using a torque analyzer for additional flexibility.

The FG-25z helps manufacturers maintain torque accuracy and meet ISO quality standards across production.

The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).

Accessories

Calibration & Service:

  • Torque Analyzers & Sensors: If torque tools slip out of calibration, that could impact the quality of your products. An accurate way to regularly test calibration onsite is a great way to reduce risk and ensure safety. With Mountz torque analyzers and sensors, you can test tools before they go into service daily or weekly.

    Error-Proofing:

    • Engineered with a cam-over mechanism, the mini poka-yoke torque screwdrivers reduce the possibility of operator error in both fastening directions, ensuring correct torque is applied and preventing fastener breakage.
    • Providing the operator with a preset tool prevents tampering and ensures that operators always use the appropriate torque setting—unmatched security of the tamper-proof internal adjustment. No external adjustment scale—must be preset using a torque analyzer.


    Process Improvement:

    • Use color-coded label options for visible, easy-to-understand torque-setting identification.
    • Supports ISO quality control and manufacturing standards


    Ergonomics:

    • Ergonomic handles are designed with fewer flutes and larger recesses to make the tools easier to hold and less likely to cause hand fatigue.
    • The small, ergonomic handle design fits the operator's hand perfectly and reduces fatigue during extended assembly operations. The tool's compact size makes it versatile for applications with limited space access.


    Advanced Technology:

    • The unique bearing system eliminates axial load and sideloads on the fastener applied by the operator.
    • Mountz tools use a patented, secure bit-locking mechanism with a one-touch release, allowing the operator to activate it to enable greater application flexibility and efficiency on the line.
    • Reduced bit wear lowers the incidence of bits falling out, which can slow production or cause product damage.
    • The new design improves serviceability, reduces downtime, and enables the replacement of individual parts to extend the life of your investment.
    • The FG mini screwdriver has been qualified with a PFAS-free lubricant.
    • The tool can be calibrated and operational in either the CW or CCW direction. (FG screwdriver default configuration: Torque Direction Arrow is engraved in CW direction on the tool. Mountz preset service option is conducted in the CW direction). Request a quote for an application that requires CCW calibration and CCW Torque Direction Arrow on the FG tool.


    Mountz Quality Standards:

    • Our tools are durable & reliable. We provide an industry-leading 2-year unconditional warranty. Lifetime against defects.
    • Unmatched by any mini torque screwdriver.
