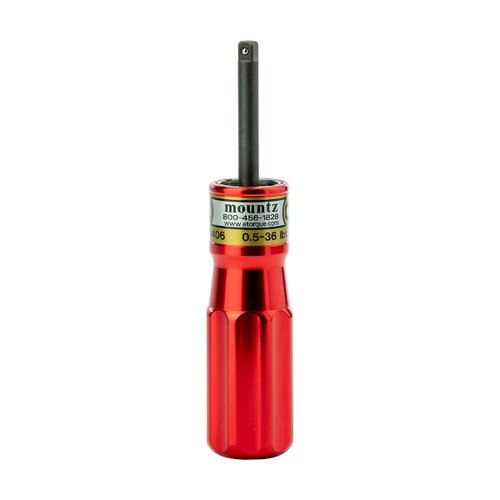

IFR Standard TLS0406 Preset Torque Screwdriver SD

Item #: 020479
$322.00
The design action of the standard TLS screwdrivers is such that when the tool reaches its pre-set torque value the mecha READ MORE

PRODUCT SPECIFICATIONS

Model:
IFR Standard
Item #:
020479
Drive Size:
1/4" M/Sq.
American:
4.4 - 36 lbf.in
S.I.:
50 - 406 cN.m
Metric:
5.1 - 41 kgf.cm
Tool Weight:
9.9 oz.
Tool Length:
6.2
Handle Color:
Red

Item(s) successfully added to your cart.

Please select your calibration option below before adding to cart

Add Calibration Service — $20.00

Please select an option:
  ADD SERVICE
  NO SERVICE NEEDED

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Please select an option:
  ADD CERTIFICATE
  NO CERTIFICATE NEEDED

Time Interval is required

F
T
T

Product Details

The design action of the standard TLS screwdrivers is such that when the tool reaches its pre-set torque value the mechanism disengages from the drive thus limiting the torque applied. Further rotation of the screwdriver handle resets the mechanism ready for the next torquing operation. The IFR models eliminates any small reaction during resetting.
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).

Product Benefits

  • Various models that range from 1.2 - 120 lbf.in.
  • All IFR models are "impact free" when the cam resets.
  • Screwdriver is torque limiting in the CW direction only.
  • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
  • Four different colored lightweight aluminum handles allow color coding of specific torque values in production areas. (TLS1360 - Black only)
Note! Class 100 Clean Room models available
