LTS-15 Linear Torque Arm

Item #: 260604
$1,350.00
In Stock

Mountz linear torque arm absorbs the torque reaction emitted from power tools, enhancing operator comfort and reducin READ MORE

Specs

Model:
LTS-15
Item #:
260604
American:
- 11 lbf.ft
S.I.:
- 15 N.m
Tool Height:
30.6
Clamp Color:
1 - 1 3/4"
Minimum Arm Reach:
12.7
Maximum Arm Reach:
19.7

Mountz linear torque arm absorbs the torque reaction emitted from power tools, enhancing operator comfort and reducing fatigue. The daily repetitive process of fastening screw after screw with a power tool exposes operators to the risk of repetitive stress injuries, The torque arm reduces the physical strain on operators, promoting a safer working environment and reducing the risk of injuries.

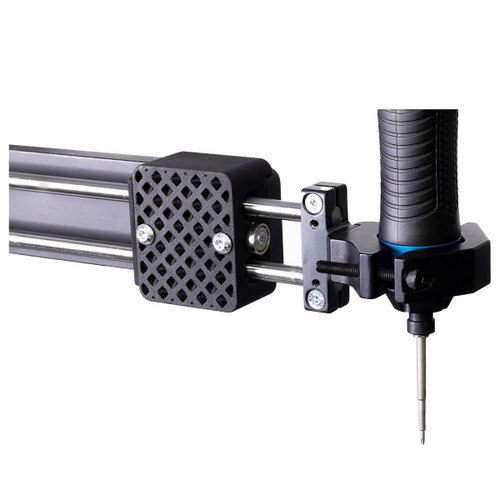

The ergonomic torque arm prevents side load and cross-threading by securely clasping the electric screwdriver or pneumatic screwdriver and keeping the tool in a perpendicular alignment. Enhance safety, productivity, and quality control during the assembly process by incorporating a linear torque arm into the workstation.

Maximum Tool Weight is 2.9 lbs.

Note: The torque arm has a maximum tool weight it can support. The total weight of the tool needs to include the power tool, the power tool cable (or air hose), the bit or socket used with the tool, and any attachments on the power tool, such as a vacuum attachment, right-angle adapter, or pistol-grip attachment.

    Enhance Ergonomic and Safety Benefits:

    • Reduces the physical strain on operators, promoting a safer working environment and reducing the risk of injuries.
    • Mountz ergonomic torque arm absorbs the torque reaction emitted from power tools, enhancing operator comfort and reducing fatigue.
    • Decrease RMI (Repetitive Motion Injury) and CTS (Carpal Tunnel Syndrome) events while improving production output.


    Process Improvement:

    • Space Efficiency: Ideal for compact workstations, making the best use of available space while maintaining high productivity.
    • Adjustability: Designed for fastening tasks that require precise horizontal (linear) movements, ensuring accuracy and efficiency in tool operation. The linear arm moves with precision and ease, allowing you to position it exactly where you need it without any hassle.
    • Improve process control by preventing cross-threading and sideload occurrences by keeping the power tool perpendicular alignment.

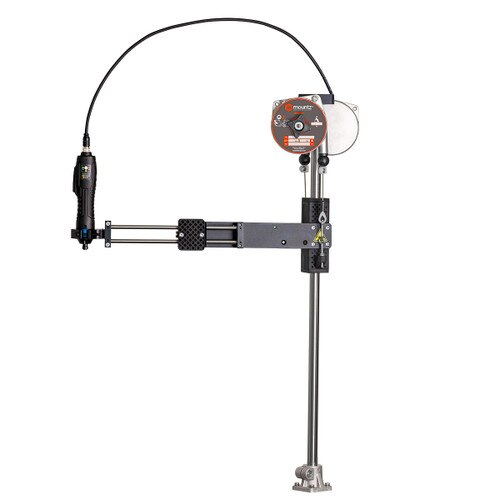

    • The Mountz linear arm is used with electric and pneumatic screwdrivers and prevents power tools from being accidentally dropped.


    Quality Materials:

    • The arm's column (pole) is steel with a polished chrome finish.

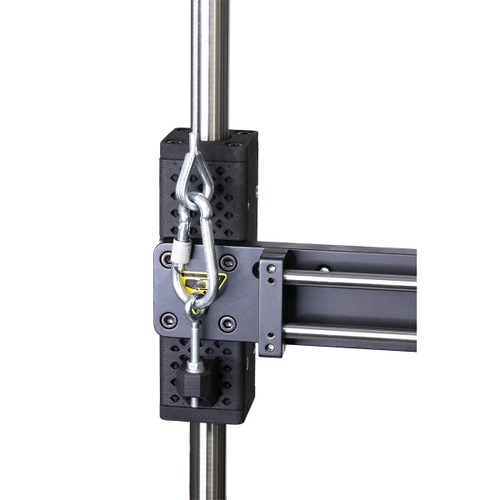

    • Tool balancers have an aluminum housing and braided cable for durability. Load adjustability can be easily made by turning the knob clockwise for lighter loads and counterclockwise for heavier loads. The balancers have a locking mechanism to prevent injury. The balancers included take into account the load of the arm and average loads of tools, cables, and bits delivering up to the maximum torque for the arm.
    • The arm's support slider is made of industrial-grade thermoplastic for optimized weight and durability in lower-torque applications, and features integrated steel bearings.

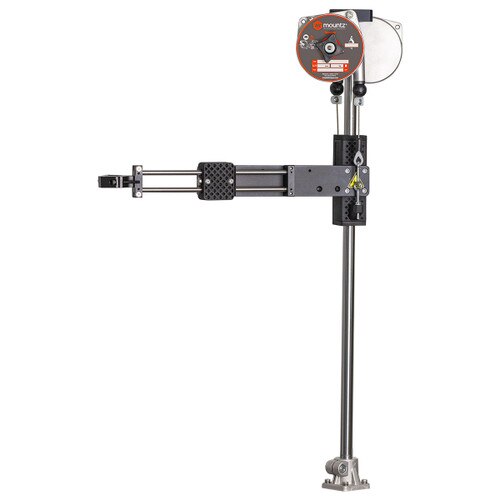

    • The Mountz linear arm is made of 7000-series aluminum, featuring polished chrome steel sliding rods and thermoplastic-housed steel bearings.
