  • MDC-26 v1 Controller with SD Card Data Memory 230V
Legacy Product
This product has been replaced by: MDC-26 Controller V2 with SD Card Data Memory (230V)

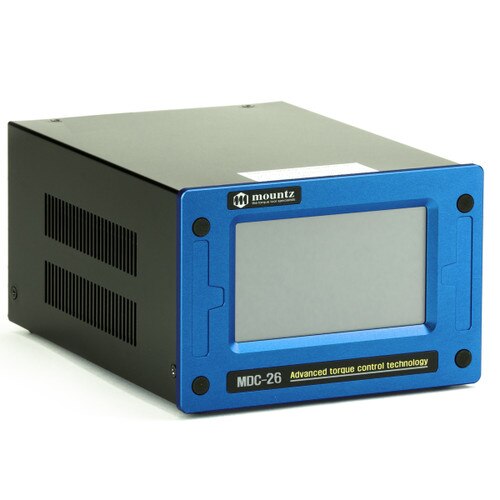

MDC-26 v1 Controller with SD Card Data Memory 230V

Item #: 310002
Certifications:
The MDC controller operates with only the MD-Series electric screwdrivers. It is a single tool controller that offers pr READ MORE

Specs

Model:
MDC-26 v1 Controller with SD Card (230V)
Item #:
310002
Tool Weight:
4.4 lbs.
Tool Length:
7.75
Tool Width:
10.875
Tool Height:
4.25
Output VDC:
DC38V 3.5A
Input VAC:
AC120VC / AC230V, 50/60Hz
The MDC controller operates with only the MD-Series electric screwdrivers. It is a single tool controller that offers programmable speed, angle, auto reverse and soft start options. I/O interface for communication with external devices such as PLC.

    • Preset selection capability: Front panel or 25P I/O
    • Angle Control: 0.1 - 10 turn
    • Preset Parameters: Torque, Speed, Soft Start & Angle in 15 preset numbers
    • Auto detection of connected driver when controller is powered on
    • Error display: Error code display (3 groups)
    • Fastening Quality Control: OK/NG monitoring of screw fastening by preset pattern of angle and/or time
    • PC based program for parameter settings, monitoring and real time output
    • Front panel 4.3” Color LCD with touch screen
    • Communication 1 x RS232C, 1 x Ethernet
    • Protocol: Modbus
    • SD Card data memory slot (memory card not included).
    • Supplied with lift stand.

Operates with Electric Screwdriver Models: MD-26 & MD-22 Series
