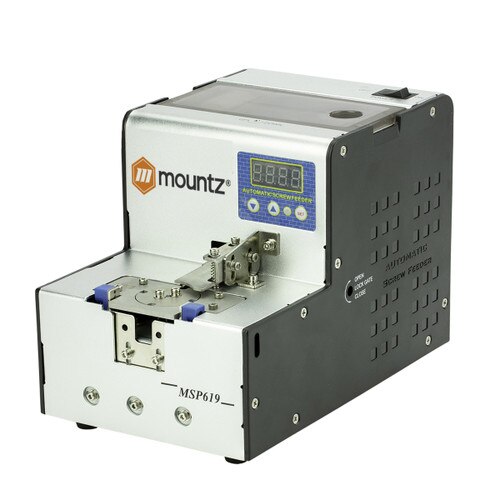

MSP619-40 Automation Screw Presenter

Item #: 144794
$1,400.00

This tool typically ships within 3 - 4 weeks. For further information, call 408-684-1442.

The MSP619-40 automation screw presenter is ideal for robotic manufacturing applications. This simple machine operates i READ MORE

Specs

Model:
MSP619-40
Item #:
144794
Tool Weight:
5.5 lbs.
Tool Length:
7.125
Tool Width:
5
Tool Height:
6
Screw Head Diameter "D":
1.2 - 12
Screw Head Height "t":
0.2 - 6
Screw Length "L":
1.0 - 14
The MSP619-40 automation screw presenter is ideal for robotic manufacturing applications. This simple machine operates in combination with automation & robotic screw driving systems. The compact size allows easy installation. The cost-saving device makes the assembly process more efficient by mechanically presenting a screw to a fixed pick-up point. Optimize resources, cut labor costs and increase production capacity with automation equipment.

    • For cell or line-based assembly, an operator uses a power tool equipped with a vacuum attachment to pick up a screw from the presenter screw guide. Common assembly methods cause assemblers to inefficiently fumble with screws that are stored in bins or shaker trays.
    • Screws are poured into the hopper of the screw presenter and automatically lined up for dispensing.
    • This simple mechanism allows trouble-free operation, eliminating jammed or stuck screws.
    • The cost-effective automated screw presenter is an alternative machine instead of the cumbersome and very expensive screwfeeder systems.
    • Adjustable to match different screw sizes. No need to change or purchase additional rails.
    • Smoothly feeds screws. Adjustable vibration and speed settings.
    • The compact system can fit into and work environment for easy accessibility and provides virtually maintenance-free operation.
Screw Presenter requires the use of a vacuum attachment with the power tool.

Need assistance with selecting a screw presenter for your fastening application? Download our selection guide  and submit with your request.
