Legacy Product
This product has been replaced by: FG-40i Preset Torque Screwdriver

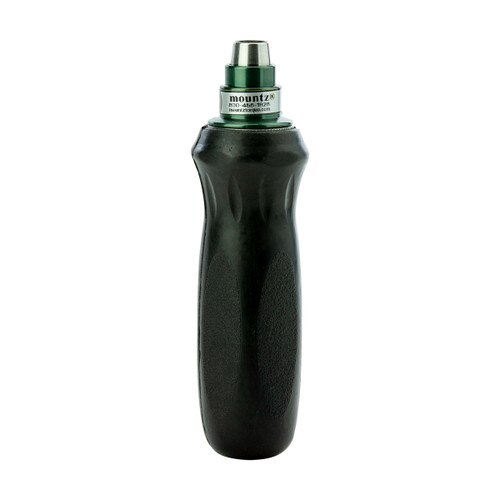

PSE450 Preset Torque Screwdriver
Item #: 020187
Specs
Model:
PSE450
Item #:
020187
Drive Size:
1/4" F/Hex
American:
4.4 - 40 lbf.in
S.I.:
50 - 450 cN.m
Metric:
5.1 - 45.8 kgf.cm
Tool Weight:
7.1 oz.
Tool Length:
4.8
The PSE450 preset torque screwdriver product has been discontinued. You can access supporting product information from this page.
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).
- Preset torque limiting screwdriver (internally adjustable).
- Thrust bearings insure that the torque setting is independent of any end load applied by the operator.
- Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
- Precision radial ball clutch "slips-free" when the preset torque is reached preventing over-torquing.
- Bi-directional operation and is calibrated in either the CW or CCW direction.
- ESD compliant.
- Ergonomic rubber hand grip.
