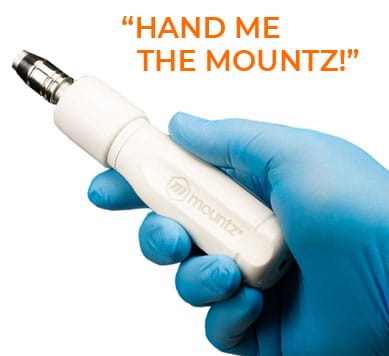

FG Cleanroom Preset HVG (High-Vacuum Grease) Torque Screwdrivers
Engineered and assembled in Silicon Valley, Mountz Torque FG preset precision clean room torque screwdrivers are the most advanced hand tools in the world. Torque range suitable for micro, low, and medium torque applications.
Mountz offers CR-HVG cleanroom screwdrivers with a specialized ultra-high vacuum and exceptionally low vapor pressure for highly sensitive applications in ultra-high vacuum and optics to prevent further airborne contamination and sustain lubrication performance.
Preset torque screwdrivers improve productivity by consistently applying the correct torque value to each fastener. They are ideal for fastening applications where operators repeatedly assemble parts at the same torque setting. A preset screwdriver doesn't have an external torque adjustment scale. These tools have an internal torque adjustment mechanism for setting the torque value and preset using a hex key and a torque analyzer.
The locking mechanism prevents accidental torque setting changes. Designed for industries where production errors aren't acceptable, poka-yoke torque screwdrivers prevent over-torque events.
Quality-minded engineers can give Mountz FG tools to any operator and have the confidence that they will deliver the correct torque, time after time.
Clean Room Environment:
- High-Vacuum Grease (HVG): For highly sensitive applications in ultra-high vacuum and optics, Mountz offers HVG cleanroom screwdrivers with a specialized ultra-high vacuum and exceptionally low vapor pressure to prevent further airborne contamination and sustain lubrication performance.
- Minimize Particle Generation: A high-grade, low-outgassing powder coat finish eliminates flaking paint, reducing potential contamination during assembly.
- Superior Leak Protection: Dynamic wear-resistant seals create a double barrier against grease leakage, ensuring a clean workstation.
- Enhanced Cleanliness: The cleanroom screwdriver has a protective polyurethane sleeve, which adds an extra layer of defense against airborne contamination.
- Built to Withstand Rigorous Cleaning: The tools can withstand frequent wiping and are ideal for cleansing regimens using water and isopropyl alcohol-based solvents. They are not designed to be submerged.
CHOOSE THE MODEL BELOW FOR PURCHASING DETAILS
| [object Object] |
|---|
- High-Vacuum Grease (HVG): For highly sensitive applications in ultra-high vacuum and optics, Mountz offers HVG cleanroom screwdrivers with a specialized ultra-high vacuum and exceptionally low vapor pressure to prevent further airborne contamination and sustain lubrication performance.
- Designed for a cleanroom environment, the Mountz screwdriver is manufactured with anti-corrosion materials using a high-grade, low-outgassing powder coat.
- The screwdrivers feature dynamic wear-resistant internal seals to prevent grease leakage and minimize airborne contamination.
- Cleaning Regimen: These tools are not designed to be submerged. Cleansing procedures involving water and isopropyl alcohol-based solvents are permitted.
- Engineered with a cam-over mechanism, cam-over poka-yoke torque screwdrivers reduce the possibility of operator error in both fastening directions, ensuring correct torque is applied and preventing fastener breakage.
- Providing the operator with a preset tool prevents tampering and ensures that operators always use the appropriate torque setting—unmatched security of the tamper-proof internal adjustment. No external adjustment scale—must be preset using a torque analyzer.
- Preset torque screwdrivers are ideal for production applications where consistent torque is critical. The screwdrivers are commonly used for precision fastening tasks where operators must consistently apply the same torque setting for each part. Preset torque screwdrivers offer greater consistency and repeatability, reducing the risk of operator error.
- Ergonomic handles are designed with fewer flutes and larger recesses to make the tools easier to hold and less likely to cause hand fatigue.
- Mountz torque unique bearing system eliminates axial load and sideloads on the fastener applied by the operator.
- Mountz tools use a patented secure bit locking mechanism with a one-touch release so that the operator can activate it to enable greater flexibility of applications and efficiency on the line.
- Reduced bit wear lowers the incidence of bits falling out, which can slow production or cause product damage.
- The new design improves serviceability, reduces downtime, and enables the replacement of individual parts to extend the life of your investment.
- The tool can be calibrated and operational in either the CW or CCW direction. (FG-CR screwdriver default configuration: Torque Direction Arrow is engraved in CW direction on the tool. Mountz preset service option is conducted in the CW direction). Request a quote for an application that requires CCW calibration and CCW Torque Direction Arrow on the FG-CR tool.
- Our tools are durable & reliable. We provide an industry-leading warranty: 2 years unconditional. Lifetime against defects.
- Calibration life 4x ISO standards (for the FG-8i CR, FG-20i CR, FG-40i CR, and FG-125i CR models). Unmatched by any torque screwdriver.
- Calibration life meets the ISO standards (for the FG-25
Clean Room Environment:
Error-Proofing:
Process Improvement:
Ergonomics:
Advanced Technology:
Mountz Quality Standards:
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).
Calibration & Service:
- Torque Analyzers & Sensors If torque tools slip out of calibration, that could impact the quality of your products. An accurate way to regularly test calibration onsite is a great way to reduce risk and ensure safety. With Mountz torque analyzers and sensors, you can test tools before they go into service daily or weekly.
- Prepaid Calibration Vouchers: Book service and maintenance in advance to ensure your tools are always in top condition and ready to use. Add this service to any tooling purchase.
Learn how these screwdrivers prevent airborne contamination and grease leakage in critical environments. Download the white paper.
