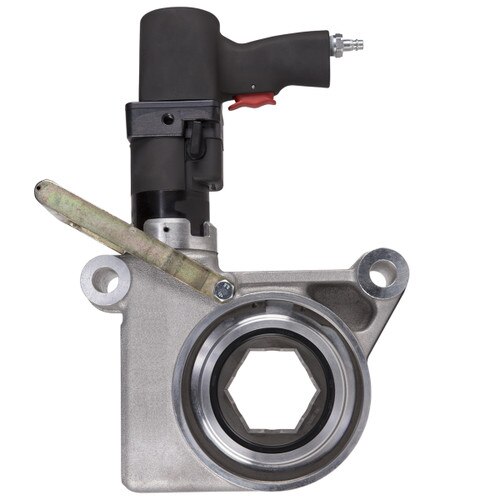

RCL-80P Pneumatic Torque Multiplier

Item #: 210182
$17,300.00

This tool typically ships within 3 - 5 weeks. For further information, call 408-684-1442.

The RCL-80P radial gearing pneumatic torque multiplier is designed for precision tightening and loosening of all heavy d READ MORE
NOTE: Requires Companion Items View

Calibration Options For This Product:

Add Calibration Certificate — $125.00

Time Interval is required

Item(s) successfully added to your cart.

T
F
T

Required Companion Items:

LCU-2 Lubro Control Unit
Item #061429
$1420.00
Item(s) successfully added to your cart.

Specs

Model:
RCL-80P
Item #:
210182
American:
494 - 3569 lbf.ft
S.I.:
670 - 4840 N.m
Metric:
68.3 - 493.7 kgf.m
Hex Drive:
80mm
Tool Weight:
46.3 lbs.
Tool Length:
17.7
Tool Width:
9.1
RPM High:
6
RPM Low:
2
The RCL-80P radial gearing pneumatic torque multiplier is designed for precision tightening and loosening of all heavy duty bolting applications. These pneumatic multipliers are specially designed for heat plate exchanger applications. The torque multiplier shuts-off when the pre-set torque is achieved. It’s non-impacting and operates at a smooth, continuous rotation. The torque tool provides quick and simultaneous tightening of large plate packs.
Accuracy better than ± 5%

Related Products

  • Compact design is safe, easy, and simple to handle.
  • Low profile radial head allows access where clearance is limited.
  • Specially designed for heat plate exchanger applications.
  • Continuously rotating hex drive is faster than hydraulics and more reliable than impacting tools.
  • Torque reaction is absorbed by means of a reaction stud.
  • Hex drive size reduces or enlarges with drop in hex adapters.
All Pneumatic Torque Multipliers should use a high quality air filter regulator. Torque setting is obtained by air pressure. Each Pneumatic Multiplier is supplied air-flow chart.
