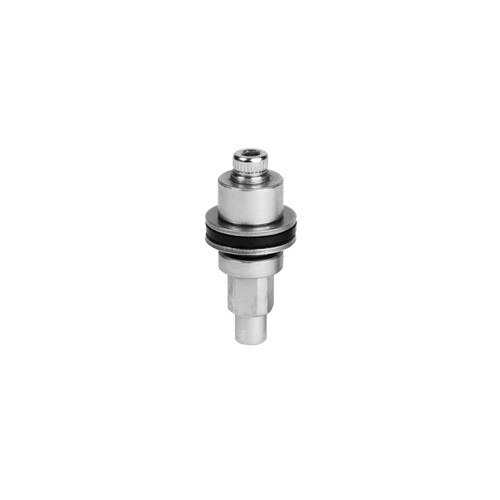

RDA-S1.5 Run Down Adapter

Item #: 070845
$365.00
In Stock

The run down adapter is designed to provide run down simulation for a “soft joint” application. This device provides READ MORE

Specs

Model:
RDA-S1.5
Item #:
070845
American:
0.5 - 5 lbf.in
S.I.:
5.6 - 56.5 cN.m
Input Drive:
2.5mm Hex
Output Drive:
1/4 M/Sq

The run down adapter is designed to provide run down simulation for a “soft joint” application. This device provides consistent and reliable torque readings for use with power-driven torque control tools. The RDA reduces the impact and irregular peaks that cause poor repeatability. The run down adapter is mounted in-line between the tool drive and transducer.

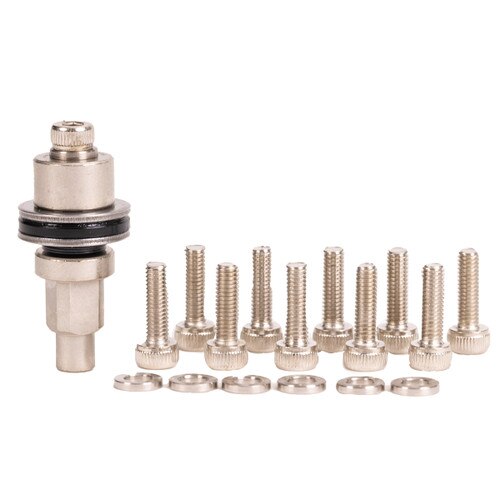

The RDA-S1.5 model is supplied with 10 replacement screws and 6 washers. Using the screw for more than the recommended cycles may cause erratic test results. The screw is estimated to be replaced after 80 run down cycles. Download the manual.

    • The unit is designed to provide run down simulation for a ‘soft joint’ application.
    • Designed to provide consistent and reliable torque readings for use with power-driven torque control tools.
    • The adapter is mounted inline between the tool's drive and the transducer.
    • Compact size and lightweight.
    • Operates in a clockwise direction only. After each run down, the RDA should be completely backed-up.

The RDA model is supplied with 10 replacement screws and 6 washers. Using the screw for more than the recommended cycles may cause erratic test results. The screw is estimated to be replaced after 80 run down cycles. Download the manual.
