Screw RDA - M2Q
Item #: 070837
Specs
Model:
Screw RDA - M2Q
Item #:
070837
American:
0.3 - 3 lbf.in
S.I.:
3.4 - 33.9 cN.m
Metric:
3.5 - 0.3 kgf.cm
Input Drive:
1.5mm Hex
Output Drive:
1/4 M/Sq

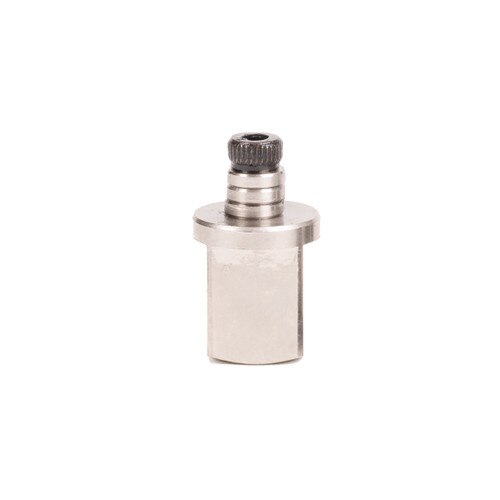

The screw run-down adapter is designed to provide a fastening simulation for a ‘hard joint’ application and is compatible only with EZ-TorQ III 1i and 3i analyzer models. This device provides consistent and reliable torque readings for power-driven torque control tools. The RDA reduces the impact and irregular peaks that cause poor repeatability. The run down adapter is mounted in-line between the tool drive and transducer.
- The unit is designed to provide run down simulation for a ‘hard joint’ application.
- Designed to provide consistent and reliable torque readings for use with power-driven torque control tools.
- The adapter is mounted inline between the tool's drive and the EZ-TorQ's transducer.
- Compact size and lightweight.
- Operates in a clockwise direction only. After each run down, the RDA should be completely backed up.
- Compatible with only the EZ-TorQ III 1i and EZ-TorQ III 3i models.

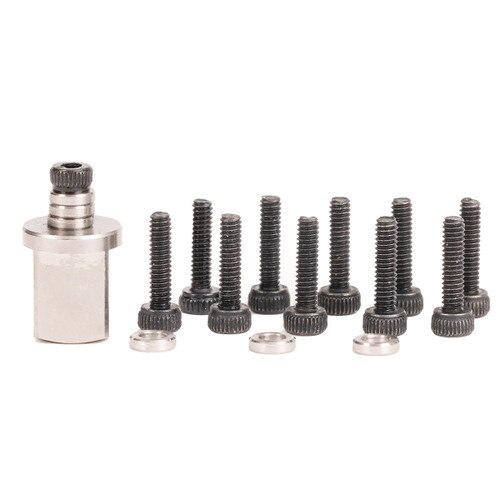

The screw RDA model is supplied with ten replacement screws and three washers. Using the screw for more than the recommended cycles may cause erratic test results. The screw is estimated to be replaced after 80 run down cycles. Download the manual.
