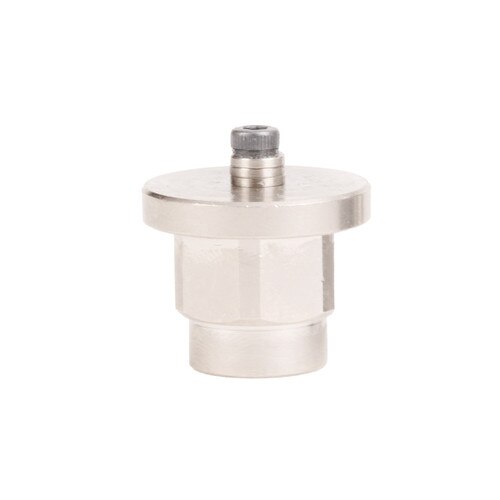

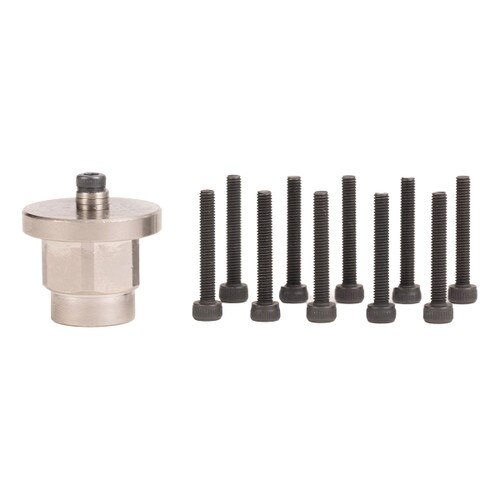

Screw RDA - M4

Item #: 070822
$70.00

This tool typically ships within 4 weeks. For further information, call 408-684-1442.

The screw run down adapter is designed only for READ MORE

Specs

Model:
Screw RDA - M4
Item #:
070822
American:
10 - 50 lbf.in
S.I.:
113 - 565 cN.m
Metric:
11.5 - 57.6 kgf.cm
Input Drive:
3mm Hex
Output Drive:
17mm Hex
The screw run down adapter is designed only for EZ-TorQ III 50i and EZ-TorQ III 100i. This device provides consistent and reliable torque readings for use with power-driven torque control tools. The RDA reduces the impact and irregular peaks that cause poor repeatability. The run down adapter is mounted in-line between the tool drive and transducer.
    • The unit is designed to provide run down simulation for a ‘hard joint’ application.
    • Designed to provide consistent and reliable torque readings for use with power-driven torque control tools.
    • The adapter is mounted inline between the tool's drive and the EZ-TorQ's transducer.
    • Compact size and lightweight.
    • Operates in a clockwise direction only. After each run down, the RDA should be completely backed-up.
    • Compatible with only the EZ-TorQ III 50i and EZ-TorQ III 100i.
