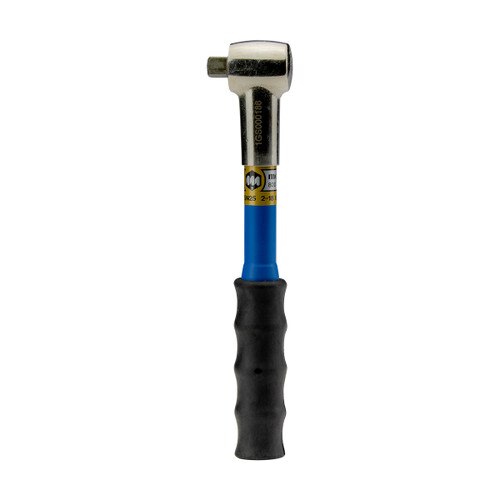

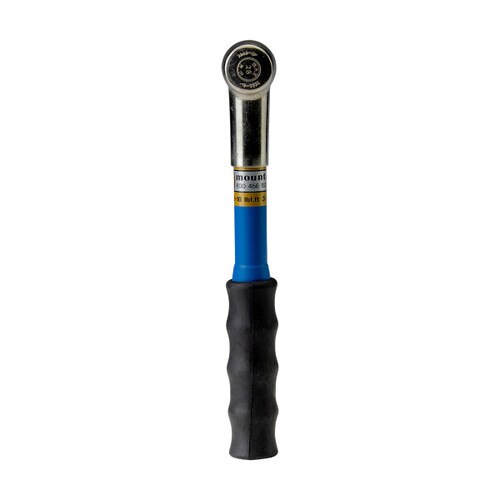

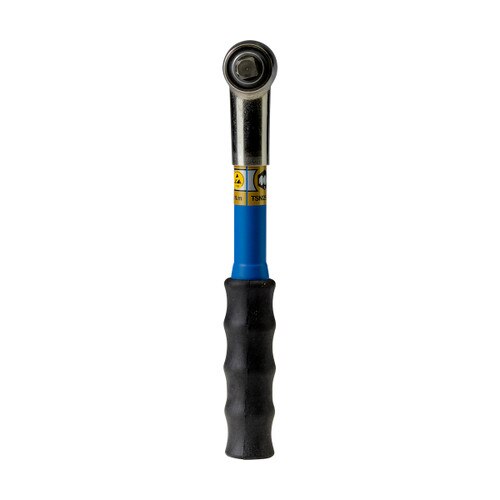

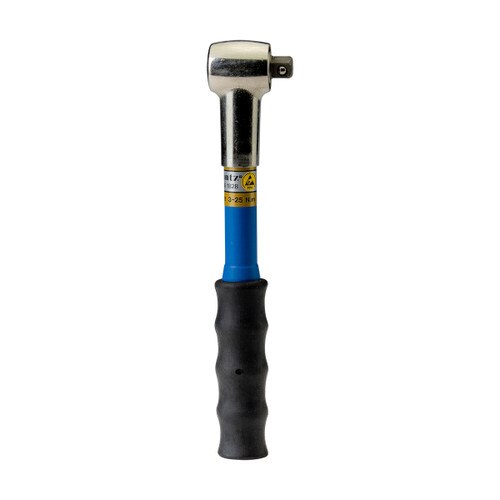

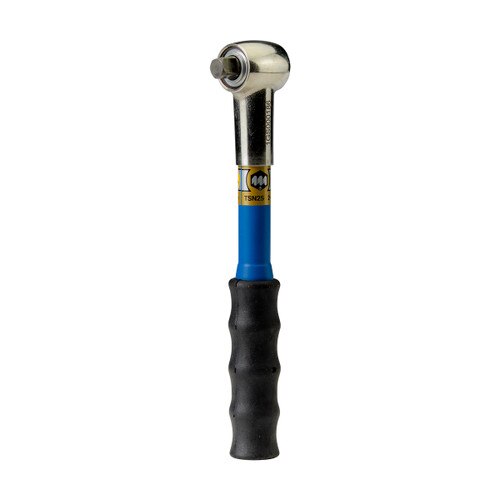

TSN25A Preset Cam-Over Wrench

Item #: 020249
$626.00

This tool typically ships within 7 - 9 weeks. For further information, call 408-684-1442.

The TSN cam-over torque wrench is a preset torque wrench designed to provide reliable and precise torque control for fas READ MORE
Model:
TSN25A
Item #:
020249
Drive Size:
3/8" Sq. Dr.
American:
2 - 18 lbf.ft
S.I.:
3 - 25 N.m
Metric:
0.3 - 2.6 kgf.m
Tool Weight:
0.75 lbs.
Tool Length:
8.5

Item(s) successfully added to your cart.

Please select your calibration option below before adding to cart

Add Calibration Service — $20.00

Please select an option:
  ADD SERVICE
  NO SERVICE NEEDED

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Please select an option:
  ADD CERTIFICATE
  NO CERTIFICATE NEEDED

Time Interval is required

F
T
T

Product Details

The TSN cam-over torque wrench is a preset torque wrench designed to provide reliable and precise torque control for fastening applications that do not tolerate over-torque conditions. Using a cam-over wrench removes the operator influence out of the torque equation and offers more accurate and repeatable results than a standard click type wrench. As a quality control tool, the torque wrench allows any user to deliver the correct torque with confidence regardless of task and operator skill level.

Product Benefits

  • A preset production torque wrench.
  • The wrench slips free when preset torque is reached, thus eliminating overtorquing.
  • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
  • Non-length dependent.
  • Fully-supported non-strip ratchet head.
  • Strong corrosion-resistant stainless steel head, protective coated handle and non-slip rubber grip.
  • Features a mechanical torque adjustment locking device (M-TALD). An auto locking single key operation prevents tampering.
  • ESD compliant (TSN25 models only).
