Legacy Product

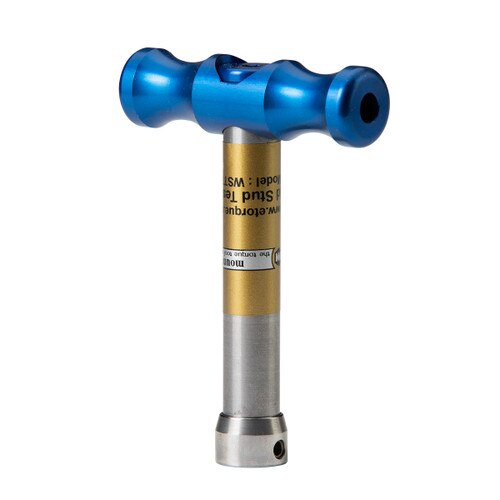

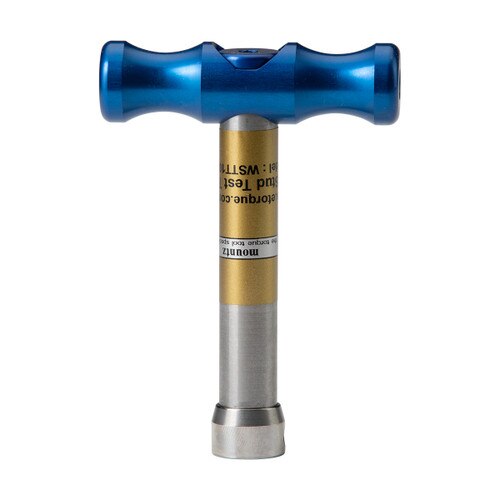

WSTT 10 Weld Stud Test Tool

Item #: 020367
The WSTT10 product has been discontinued. You can access supporting product information from this page. READ MORE

Specs

Model:
WSTT 10
Item #:
020367
American:
9 - 89 lbf.in
S.I.:
1 - 10 N.m
Metric:
10 - 102 kgf.cm
Tool Weight:
4.2 oz.
Tool Length:
8.5
Break:
20°
The WSTT10 product has been discontinued. You can access supporting product information from this page.
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).

Accessories

Interchangeable end fittings are available for WSTT.

  • The Weld Stud Test Tool is designed for use during the production of sheet metal products to test the strength and integrity of welds used to attach threaded welding studs to the sheet metal.
  • “T” shaped handle for easy operation & bi-directional.
  • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer and setting adapter.
  • Interchangeable end fittings are available.
  • Ideal tool for the automotive and appliance industry.
In order to set preset the torque value with the WSTT, a torque analyzer and a setting adapter.
