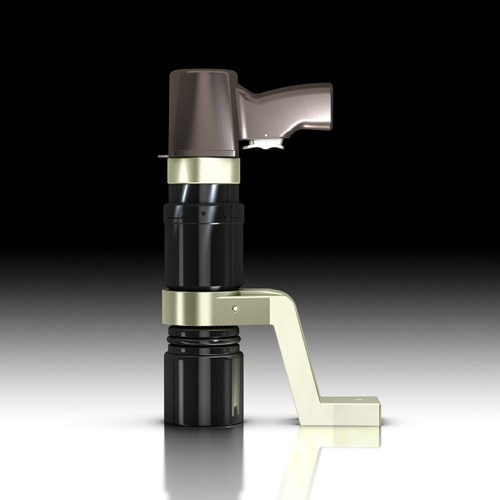

CLD85 Pneumatic Torque Multiplier

Item #: 210574
$13,895.00

  • For lead time information, please contact customer experience & sales. For further information, call 408-684-1442 or Contact Us

    • The CLD85 pneumatic torque multiplier provides precision tightening and loosening of all heavy duty fastening connection READ MORE
    NOTE: Requires Companion Items View

    Calibration Options For This Product:

    Add Calibration Certificate — $130.00

    Time Interval is required

    Item(s) successfully added to your cart.

    T
    F
    T

    Required Companion Items:

    LCU-2 Lubro Control Unit
    Item #061429
    $1495.00
    Item(s) successfully added to your cart.

    Specs

    Model:
    CLD85
    Item #:
    210574
    Drive Size:
    1" Sq. Dr.
    American:
    225 - 660 lbf.ft
    S.I.:
    305 - 895 N.m
    Metric:
    31.1 - 91.3 kgf.m
    Tool Weight:
    18 lbs.
    Tool Length:
    11.8
    RPM:
    25
    Spline Diameter:
    54 mm
    D2 Size (mm):
    85
    The CLD85 pneumatic torque multiplier provides precision tightening and loosening of all heavy duty fastening connections. The torque multiplier shuts-off when preset torque is achieved. It's a non-impacting tool and operates with smooth, continuous rotation. The torque multiplier increases speed and productivity, as it is faster than a hydraulic wrench and is less expensive.
    Accuracy better than ± 5%

    Related Products

    • Compact design is safe, easy, and simple to handle.
    • Precision tightening and loosening of all heavy duty fastening connections.
    • Flexible tool positioning with 360 degree rotating handle.
    • Shuts-off when pre-set torque is achieved. Non-impacting and operates at a smooth, continuous rotation
    • Torque adjustment and control is regulated by the Lubro Control Unit (LCU) via the air supply.
    • Multiplier increases speed and productivity, as it is faster than a hydraulic wrench and is less expensive. Eliminates the cumbersome set up time and slow ratcheting process of hydraulic wrenches.
    • Ergonomically safer than the harmful hammering of impact wrenches. Eliminates the frequent costly repairs of impact wrenches.
    • Heavy-duty gear box.
    All multipliers are supplied with a reaction foot. All Pneumatic Torque Multipliers should use a high quality air filter regulator. Torque setting is obtained by air pressure. Each Pneumatic Multiplier is supplied air-flow chart. Maximum decibel rating during operation is 78 dB(A).
