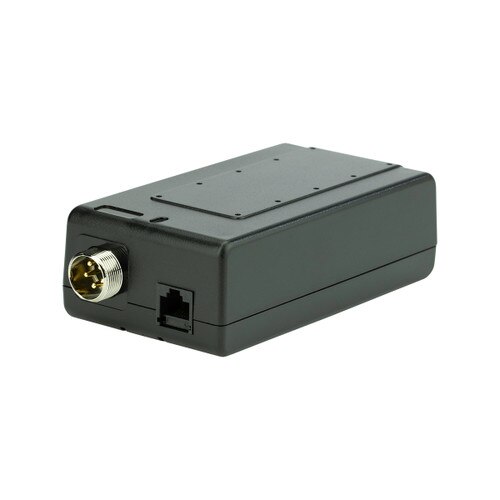

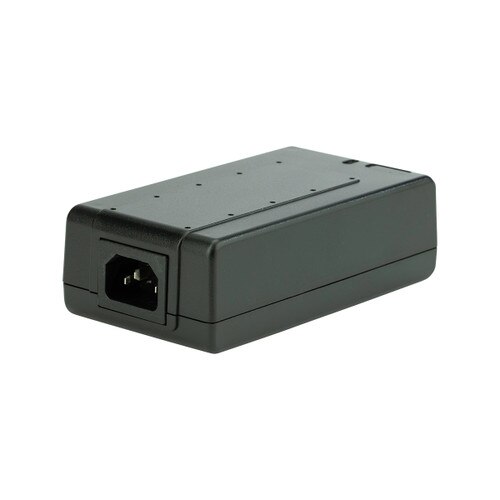

ET-30D Mini Transformer

Item #: 145899
Certifications:
$235.00

This tool typically ships within 3 -4 weeks. For further information, call 408-684-1442.

The ET-30D is a mini power supply that operates with only the Mini EF-Series electric screwdriver models. It is a single READ MORE

Specs

Model:
ET-30D
Item #:
145899
Tool Weight:
8.8 oz.
Tool Length:
5.125
Tool Width:
2.75
Tool Height:
1.5
Maximum Output:
1A
Output VDC:
30V
Input VAC:
100-230V
The ET-30D is a mini power supply that operates with only the Mini EF-Series electric screwdriver models. It is a single tool controller that is designed to operate at either 110v and 230v. The unit is can connect with the Scout screw counting system.

Related Products

    • Operates only with Mini EF-Series electric screwdriver models (EF030, EF040, and EF055)
    • Over Heat Protection (OHP) and Over Current Protection (OCP) protect drivers from damage or malfunction.
    • Temperature Detection powers down the unit and resets automatically when the unit restores to acceptable levels.
    • Switching 110V ~ 230V input voltage. The unit will reset itself if the motor/current overload is too high.
    • The unit can be connected to the Scout Screw Counter.
Operates with Electric Screwdriver Models: EF-030, EF-040, and EF055
