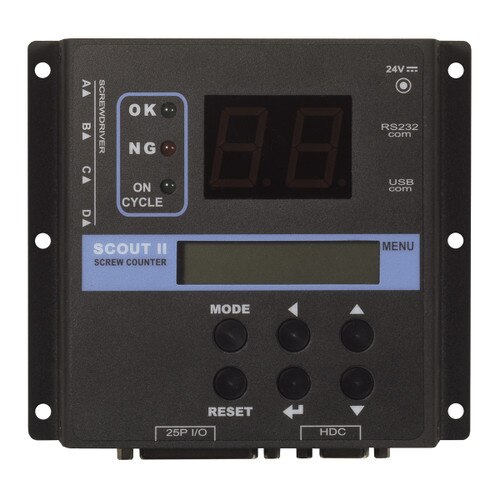

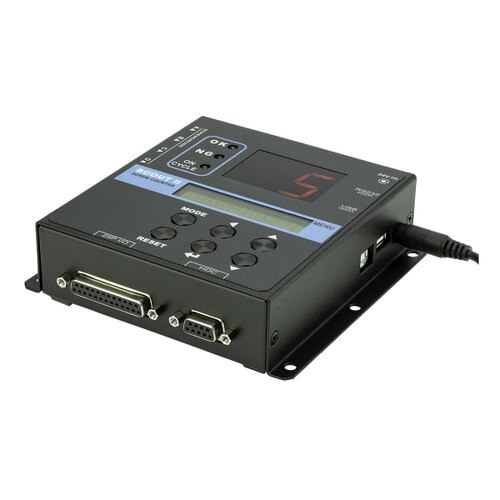

Scout II Screw Counter

Item #: 145790
$1,100.00
In Stock
Scout screw counter helps manufacturers detect and eliminate costly screw-fastening errors during the assembly process. READ MORE

Specs

Model:
Scout II
Item #:
145790
Tool Weight:
1 lbs.
Tool Length:
5.33
Tool Width:
5.33
Tool Height:
1.25
Scout screw counter helps manufacturers detect and eliminate costly screw-fastening errors during the assembly process. Using a screw counter is like putting the eyes and ears of a quality control manager where they are needed most - right on the assembly area. The scout is designed to detect cross-threading, omissions, unfinished rundowns, and cycle complete. The screw counter takes the control of the assembly process out of the operator's hands.


Software Download

If your Scout II firmware is not v1.40, contact us  for the software or any technical support needs.

    Real-Time Error-Proofing:

    • Reduced costly fastening errors and rework expenses. Our screw counter offers real-time error detection, alerting you to cross-threading, omissions, unfinished rundowns, and more. Improve process control and reduce scrap rates.


    Enhanced Quality Control:

    • Elevate your quality control measures with the Mountz Screw Counter's fastener accept/reject lights (Go/No-Go), visual assembly fastener count, and customizable parameter settings. Maintain the gold standard of quality assurance with ease.


    Fastening Process Improvement:

    • Measure and program fastening time.
    • Ability to store multiple fastener settings with the Parameter mode.
    • Increase production efficiency and reduce or eliminate rework


    User-Friendly Interface:

    • Our user-friendly interface offers intuitive programming and operation. You can easily program fastening time, adjust buzzer settings, and store multiple fastener settings while benefiting from password protection for added security.


    Flexible Connectivity:

    • From PC software programming to direct interfacing via the Scout unit, the Mountz Screw Counter offers flexibility to suit your specific needs. Connect up to four screwdrivers per program and enjoy outputs for the machine and PLC interface for streamlined line control.


    Seamless Integration:

    • Scout features the ability to integrate with machines & PLC interface for line control.
    • Input Features: Cycle Start and Driver Lock - prevents driver activation until PLC input signal
    • Output Features: Cycle End, OK, NG and Buzzer Alarm


    Set-Up:

The Scout can be powered by an  ET-30D, FT-30D, STC30 Plus, STC40, HTC-35 and YFC-35D or via external power, SMPS adapter 24VDC, 1A. It only operates with these transformers and can be used with most Mountz electric screwdrivers.

Software
If your Scout II firmware is not v1.40, contact us for the software or any technical support needs.
