Legacy Product
This product has been replaced by: EZ-TorQ III 10i Torque Analyzer
EZ-TorQ II 10i Torque Analyzer
Item #: 070800
Certifications:
Specs
Model:
EZ-TorQ II 10i
Item #:
070800
Drive Size:
17mm F/Hex
American:
1 - 10 lbf.in
S.I.:
11.3 - 113 cN.m
Metric:
1.2 - 111.5 kgf.cm
Tool Weight:
4.5 lbs.
Tool Length:
7.25
Tool Width:
4.33
Tool Height:
2
Cal Cert Options Data Set:
Supplied with a Free ISO 17025 Certification of Calibration

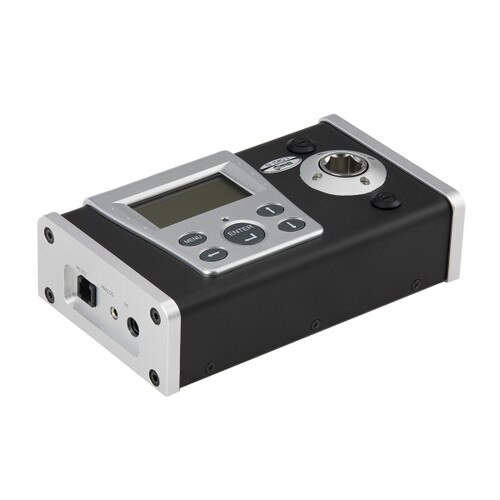

EZ-TorQ digital torque tester features a built-in transducer. The easy-to-use torque analyzer is ideal for all small hand tools & non-impacting power tools. The small size and portability of the torque tester makes it ideal for checking torque tools on production floor daily or weekly to ensure the tools aren't falling out of calibration.
Accuracy ± 0.5% of reading from 20% to 100% of full scale
Accuracy ± 1% of reading from 10% to 20% of full scale
Accessories
- Torque Tester is recommended for hand screwdrivers, most wrenches and power tools
- Selection of three operation modes: (Track, Peak and First Peak)
- Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm)
- Features built-in quick test operation
- PC Windows based software program: Mountz EZ-TorQ II Interface Program - to conduct Quick Tool Tests, Data Logging and Sensor Calibration
- Flash memory allows upgrades to be done by the user in the field & internet through the RS-232 port
- Easy-to-use menu structure

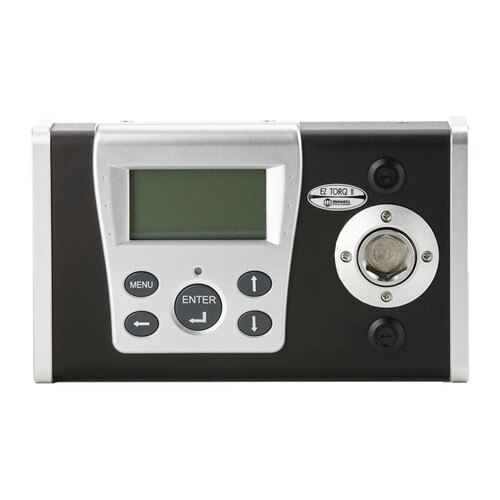

- Six-digit display

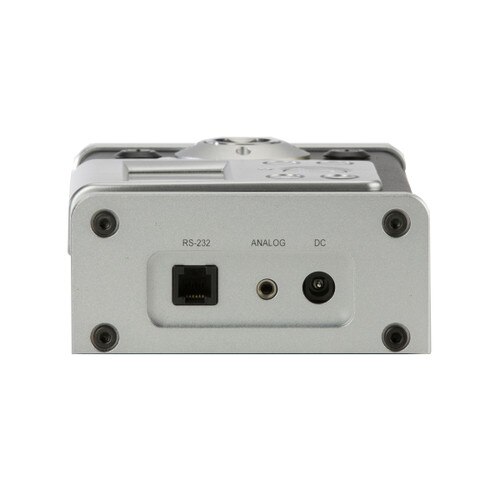

- Ability to download readings to PC via RS-232 or via USB
- Real time output via RS-232
- High capacity Li-Ion batteries for long life
- The unit will store a total of up to 150 data points
- Real time graph of torque vs. time using associated PC Windows software.
- Features Go / No Go LEDs that illuminate when high or low tolerance setting is achieved or out of tolerance
- Three low-pass filter settings (130, 150 and 500 Hz)
Not for use in testing Impact or Pulse type tools.
Software
Please utilize the following links to download the Installation Instructions, USB Drivers and Software for EZ-TorQ II’s with firmware v1.11, v1.13, v1.14 and v1.15.
Installation instructions for USB Drivers and Interface Program (for use with EZ-TorQ II with firmware v1.11, v1.13 v1.14 and v1.15.
Download
Please use the following link to download a zipped file that contains the operation instructions, EZ-Torq II Interface program v1.004, Boot loader program and Hex file version 1.15 for the EZ-TorQ II Torque Analyzer.
Download
USB Drivers for Cable (USB to RS232 Adapter) - 773069
Download
