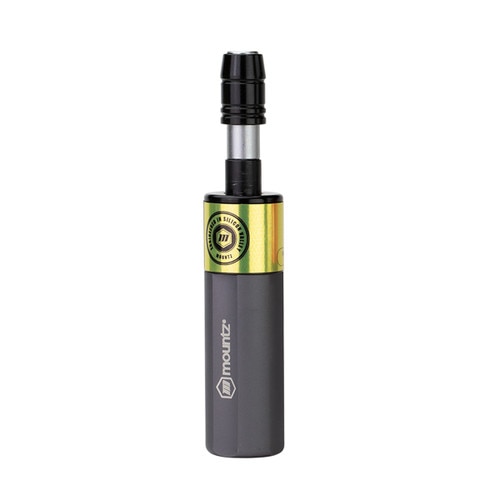

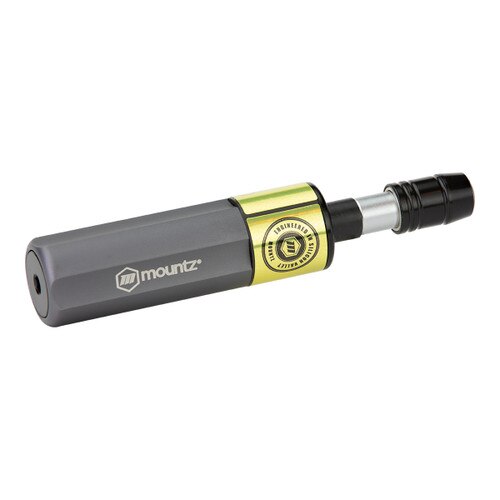

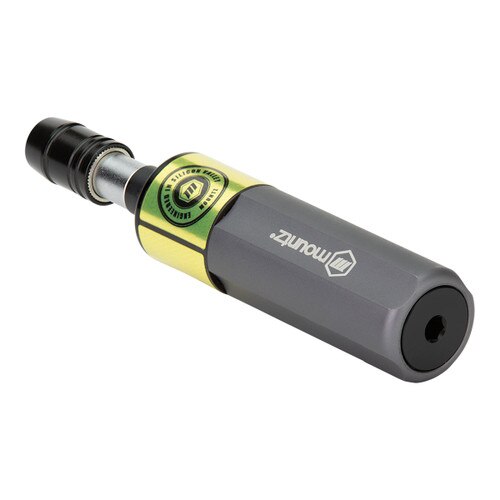

FG-8i Preset Torque Screwdriver with Gold Label

Item #: 076561
$300.00

Please contact us for availability. 408-684-1442

The FG-8i preset torque screwdriver is engineered for fastening applications where precision and consistency are esse READ MORE

Calibration Options For This Product:

Add Calibration Service — $45.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Note: If you'd like to engrave multiple items with different engraving text you will need to add them to the cart individually. Engraved tools and engraving fees are non-refundable.

View Engraving Location

Item(s) successfully added to your cart.

F
T
T

Specs

Model:
FG-8i
Item #:
076561
Drive Size:
1/4" F/Hex
American:
0.8 - 8 lbf.in
S.I.:
9 - 90 cN.m
Tool Weight:
7.3 oz.
Tool Length:
5.2
Label Color:
Gold

The FG-8i preset torque screwdriver is engineered for fastening applications where precision and consistency are essential. Designed with Mountz cam-over technology, the screwdriver automatically releases once the preset torque is reached, preventing under- and over-tightening that can lead to damaged fasteners, assembly defects, and product failures.

Ideal for repetitive assembly operations, the FG-8i ensures the same accurate torque is applied every cycle, regardless of operator skill level. Its ergonomic handle design provides comfortable operation and reduces hand fatigue during extended production use, making it an excellent solution for manufacturing environments focused on quality and repeatability.

Preset torque screwdrivers are optimized for applications where the same torque value is repeatedly required. The FG-8i is internally adjustable using a hex key and torque tester, allowing quality managers or technicians to securely preset the desired torque value without an external adjustment scale. If production requirements change, the tool can be recalibrated and reset using a torque analyzer for additional flexibility.

As a reliable quality-control tool, the FG-8i helps manufacturers maintain fastening accuracy, improve assembly consistency, and support ISO quality standards throughout production operations.

The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).

Accessories

Calibration & Service:

  • Torque Analyzers & Sensors: If torque tools slip out of calibration, that could impact the quality of your products. An accurate way to regularly test calibration onsite is a great way to reduce risk and ensure safety. With Mountz torque analyzers and sensors, you can test tools before they go into service daily or weekly.

    Error-Proofing:

    • Engineered with a cam-over mechanism, cam-over poka-yoke torque screwdrivers reduce the possibility of operator error in both fastening directions, ensuring correct torque is applied and preventing fastener breakage.
    • Providing the operator with a preset tool prevents tampering and ensures that operators always use the appropriate torque setting—unmatched security of the tamper-proof internal adjustment. No external adjustment scale—must be preset using a torque analyzer.


    Process Improvement:

    • Use color-coded label options for easy-to-understand torque-setting identification.
    • Supports ISO quality control and manufacturing standards.


    Ergonomics:

    • Ergonomic handles are designed with fewer flutes and larger recesses to make the tools easier to hold and less likely to cause hand fatigue.


    Advanced Technology:

    • Mountz torque unique bearing system eliminates axial load and sideloads on the fastener applied by the operator.
    • Mountz tools use a patented secure bit-locking mechanism with a one-touch release, allowing the operator to activate it for greater application flexibility and efficiency on the line.
    • Reduced bit wear lowers the incidence of bits falling out, which can slow production or cause product damage.
    • The new design improves serviceability, reduces downtime, and enables the replacement of individual parts to extend the life of your investment.
    • The tool can be calibrated and operational in either the CW or CCW direction. (FG screwdriver default configuration: Torque Direction Arrow is engraved in CW direction on the tool. Mountz preset service option is conducted in the CW direction). Request a quote for an application that requires CCW calibration and CCW Torque Direction Arrow on the FG tool.


    Mountz Quality Standards:

    • Our tools are durable & reliable. We provide an industry-leading warranty: 2 years unconditional. Lifetime against defects.
    • Calibration life is 4x ISO standard for the FG-8i models. Unmatched by any torque screwdriver.
