FG Preset Torque Screwdrivers
Engineered and assembled in Silicon Valley, Mountz Torque FG preset precision torque screwdrivers are the most advanced hand tools in the world. Torque range suitable for micro, low, and medium torque applications.
Preset torque screwdrivers improve productivity by consistently applying the correct torque value to each fastener. They are ideal for fastening applications where operators repeatedly assemble parts at the same torque setting.

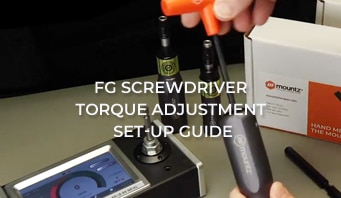

A preset screwdriver doesn't have an external torque adjustment scale. These tools have an internal torque adjustment mechanism for setting the torque value and preset using a hex key and a torque analyzer.
The locking mechanism prevents accidental torque setting changes. Designed for industries where production errors aren't acceptable, poka-yoke torque screwdrivers prevent over-torque events.
Quality-minded engineers can give Mountz FG tools to any operator and have the confidence that they will deliver the correct torque, time after time.
With FG, you can Proceed with Confidence
- Low-impact poka-yoke torque screwdriver prevents over-torque and vibration on sensitive components and delivers repeatability, traceability, and precision for all tightening applications.
- Preset screwdriver reduces the risk of operator tampering and ensures that the operator consistently applies the correct torque value to each fastener.
- Cam-over technology ensures correct torque is applied and reduces fastener breakage.
- Our tools are durable & reliable. We provide an Industry leading warranty: 2 years unconditional. Lifetime against defects. Calibration life exceeds ISO standards.
CHOOSE THE MODEL BELOW FOR PURCHASING DETAILS
| [object Object] |
|---|
- Engineered with a cam-over mechanism, cam-over poka-yoke torque screwdrivers reduce the possibility of operator error in both fastening directions, ensuring correct torque is applied and preventing fastener breakage.
- Providing the operator with a preset tool prevents tampering and ensures that operators always use the appropriate torque setting—unmatched security of the tamper-proof internal adjustment. No external adjustment scale—must be preset using a torque analyzer.
- Use color-coded label options for visible and easy-to-understand torque setting identification.
- Ergonomic handles are designed with fewer flutes and larger recesses to make the tools easier to hold, and less likely to cause hand fatigue.
- Mountz torque unique bearing system eliminates axial load and sideloads on the fastener applied by the operator.
- Mountz tools use a patented secure bit locking mechanism with a one-touch release so that the operator can activate it to enable greater flexibility of applications and efficiency on the line.
- Reduced bit wear lowers the incidence of bits falling out, which can slow production or cause product damage.
- The new design improves serviceability, reduces downtime, and enables the replacement of individual parts to extend the life of your investment.
- The tool can be calibrated and operational in either the CW or CCW direction. (FG screwdriver default configuration: Torque Direction Arrow is engraved in CW direction on the tool. Mountz preset service option is conducted in the CW direction), Request a quote for an application that requires CCW calibration and CCW Torque Direction Arrow on the FG tool
- Our tools are durable & reliable. We provide an Industry leading warranty: 2 years unconditional. Lifetime against defects.
- Calibration life is 4x ISO standard for FG-8i, FG-20i, FG40i and FG125i models only. Unmatched by any torque screwdriver.
- All Mountz-designed hand tools endure extensive Cmk testing over 20,000 continuous torque readings. Review our technical whitepaper to learn more!
Error-Proofing:
Process Improvement:
Ergonomics:
Advanced Technology:
Mountz Quality Standards:
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).
Calibration & Service:
- Torque Analyzers & Sensors If torque tools slip out of calibration, that could impact the quality of your products. An accurate way to regularly test calibration onsite is a great way to reduce risk and ensure safety. With Mountz torque analyzers and sensors, you can test tools before they go into service daily or weekly.
- Prepaid Calibration Vouchers: Book service and maintenance in advance to ensure your tools are always in top condition and ready to use. Add this service to any tooling purchase.
Learn the testing benefits of Cmk and why this measure is essential when evaluating torque tools. Download the white paper.
