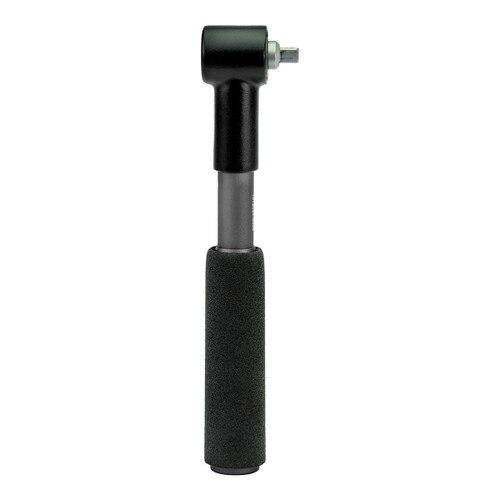

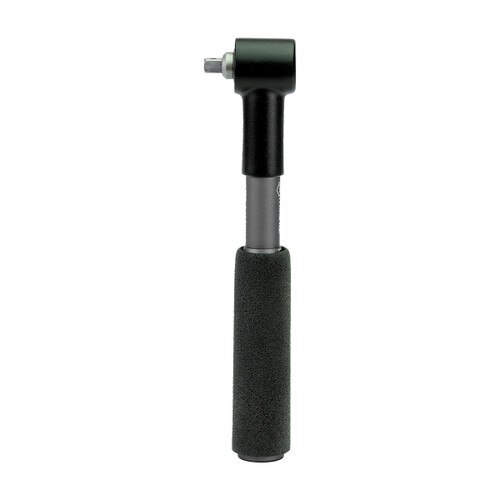

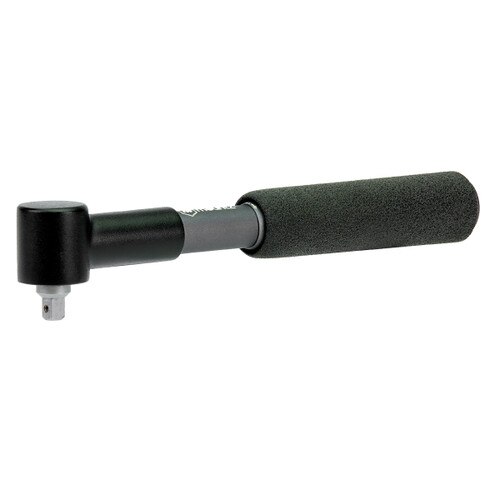

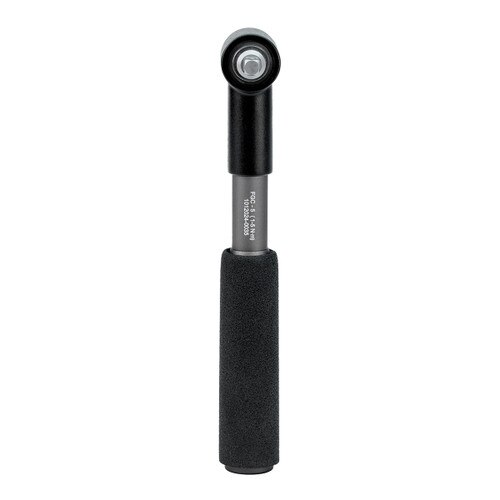

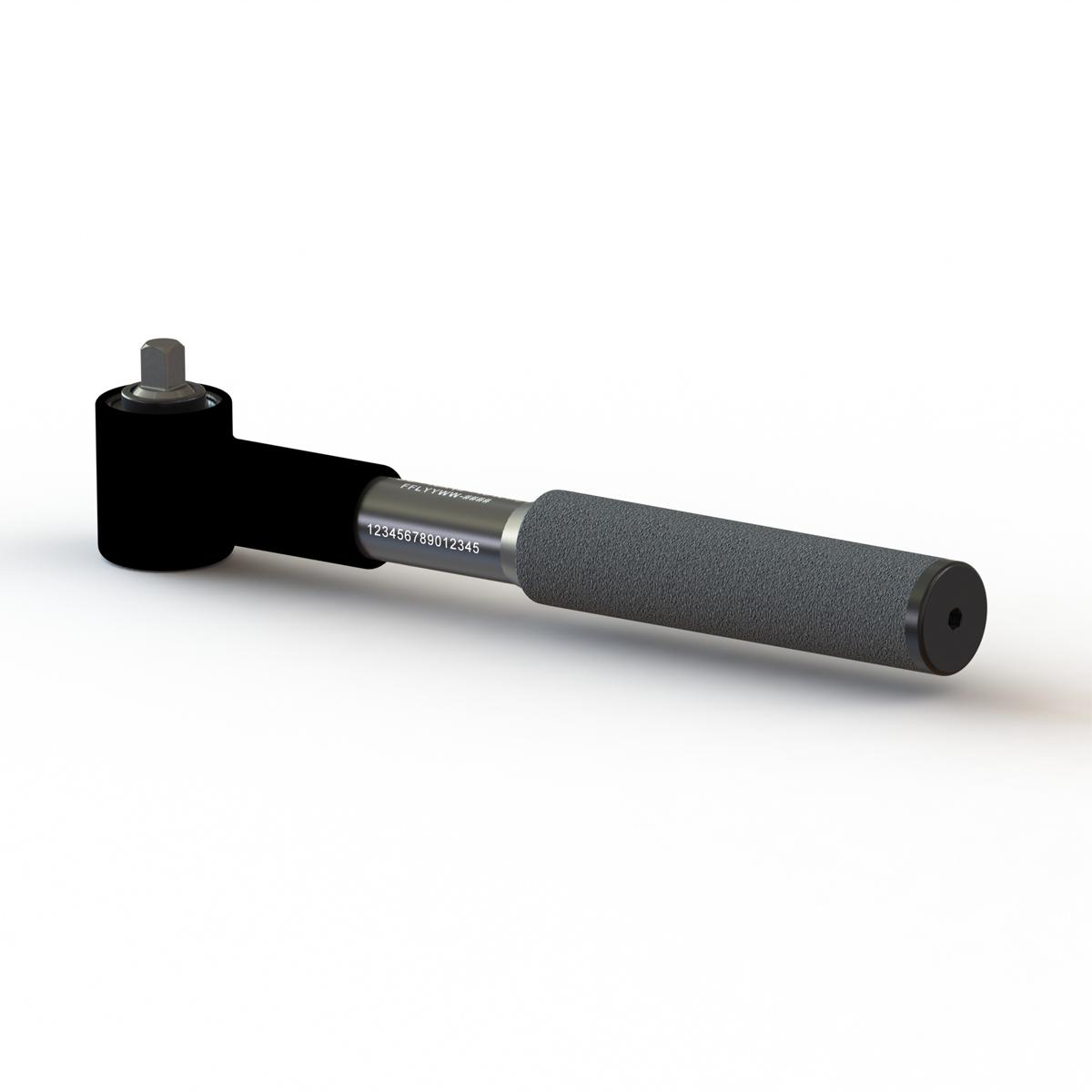

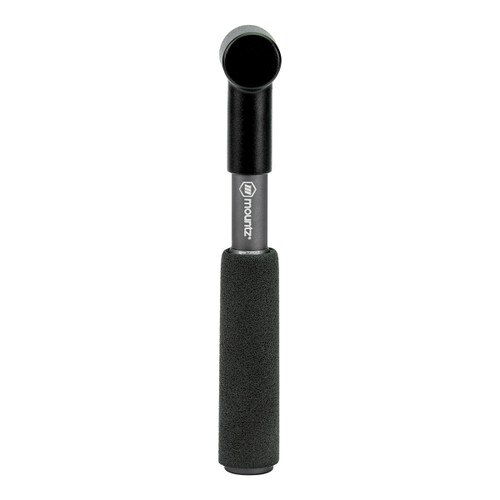

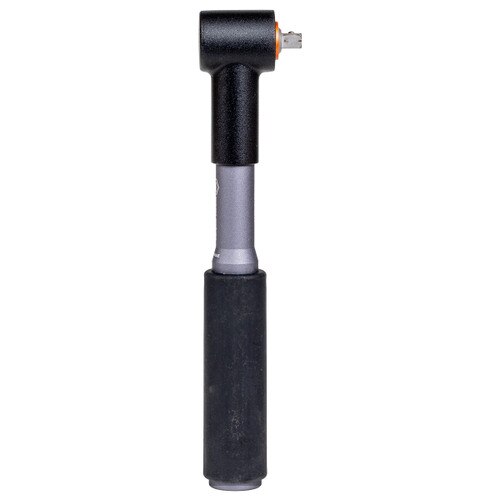

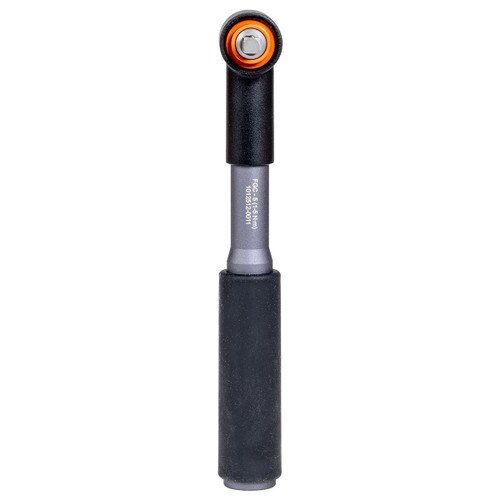

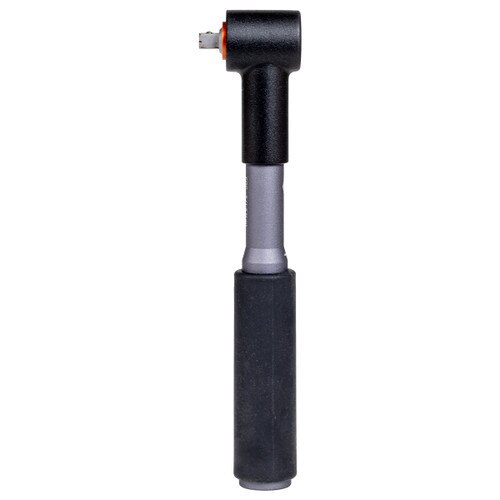

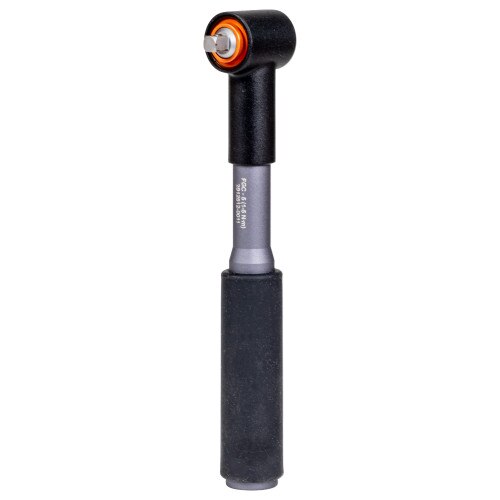

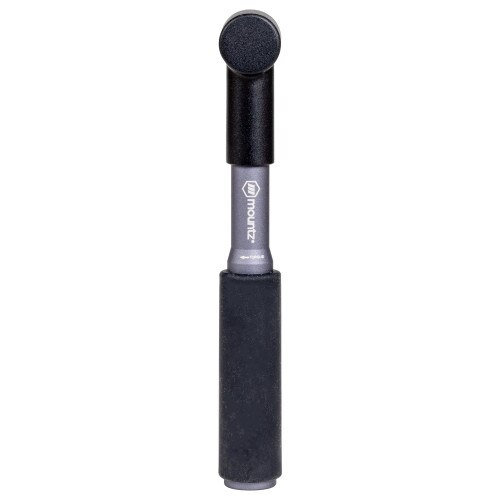

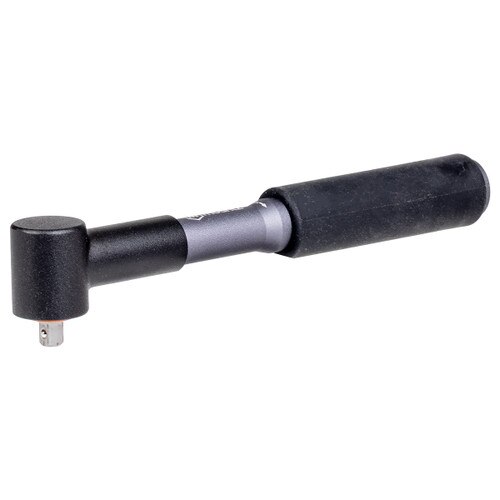

FGC-5 Preset Cam-Over Wrench

Item #: 076565
$640.00

Please contact us for availability. 408-684-1442

The Mountz FGC-5 preset cam-over torque wrench is a precision torque-limiting tool engineered to reduce the risk of o READ MORE

Calibration Options For This Product:

Add Calibration Service — $45.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Note: If you'd like to engrave multiple items with different engraving text you will need to add them to the cart individually. Engraved tools and engraving fees are non-refundable.

View Engraving Location

Item(s) successfully added to your cart.

F
T
T

Specs

Model:
FGC-5
Item #:
076565
Drive Size:
1/4" Sq. Dr.
American:
8.9 - 44.2 lbf.in
S.I.:
1 - 5 N.m
Metric:
10.2 - 51 kgf.cm
Tool Weight:
0.6 lbs.
Tool Length:
7.8

The Mountz FGC-5 preset cam-over torque wrench is a precision torque-limiting tool engineered to reduce the risk of over-torque and improve fastening consistency in critical assembly applications. Designed for error-proofing and process control, the FGC helps manufacturers achieve reliable, repeatable torque results while minimizing operator influence.

Unlike conventional click-type torque wrenches, which can allow an operator to continue applying force after the preset torque value is reached, the FGC uses a cam-over mechanism that automatically releases when the preset torque is reached. This helps prevent the operator from inadvertently applying additional torque to the fastener and reduces the risk of both under- and over-tightening caused by inconsistent operator technique.

The result is a more process-safe fastening solution that helps reduce over-torque events, damaged components, fastener failures, costly rework, and product returns.

Preset Torque for Consistent Assembly

The FGC is optimized for repetitive assembly operations that consistently require the same torque value. The torque setting is internally adjustable using a hex key and torque tester, allowing qualified quality managers or technicians to securely preset the required torque value without an external adjustment scale. This helps prevent unauthorized or accidental changes to the torque setting during production.

When production requirements change, the FGC can be recalibrated and reset to a new torque value using a torque analyzer, providing flexibility while maintaining controlled, repeatable fastening performance.

The Mountz FGC is an ideal solution for manufacturers seeking to error-proof manual fastening processes, reduce operator influence, and improve torque consistency in quality-critical assembly applications.

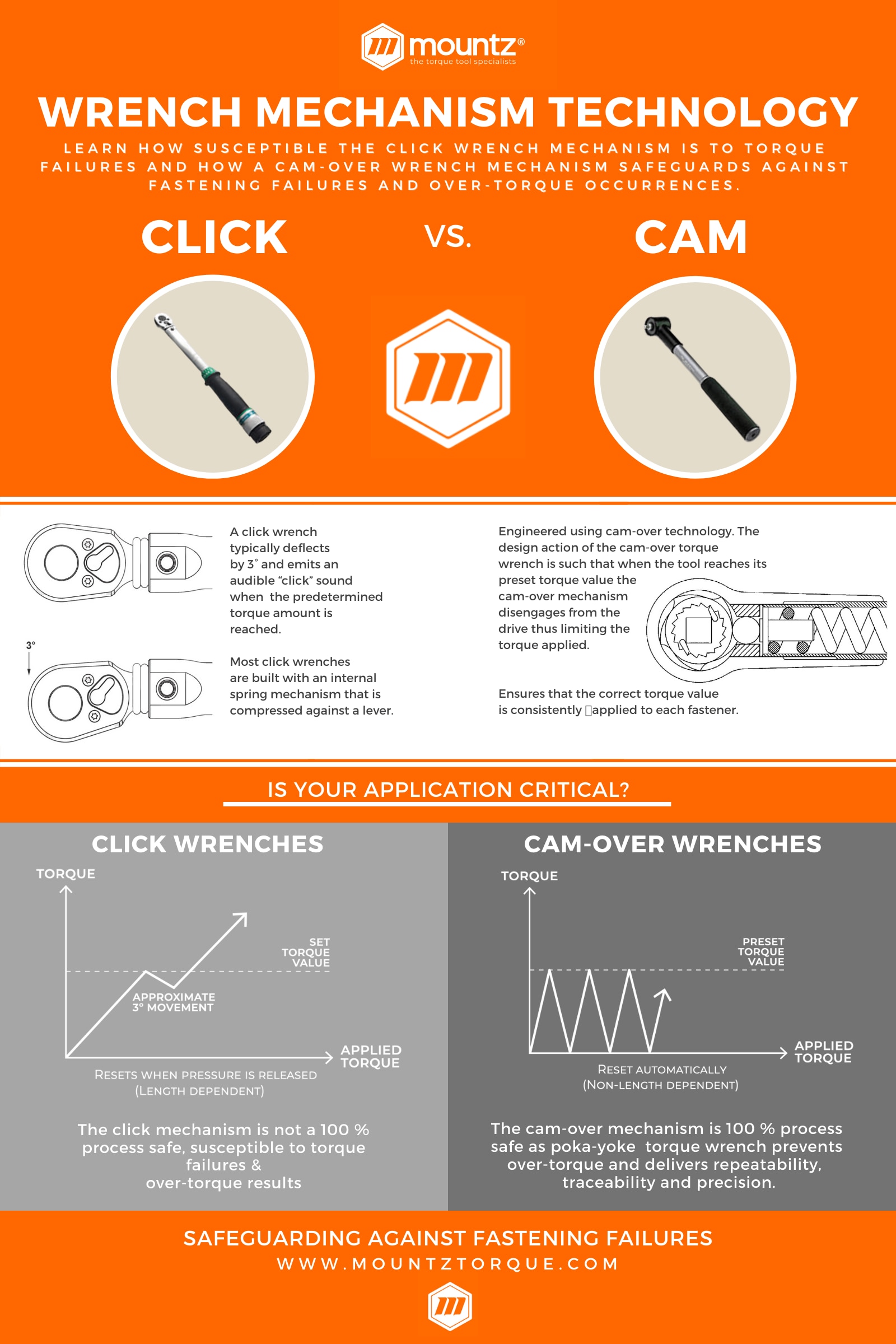

Learn More About Cam-Over Torque Technology

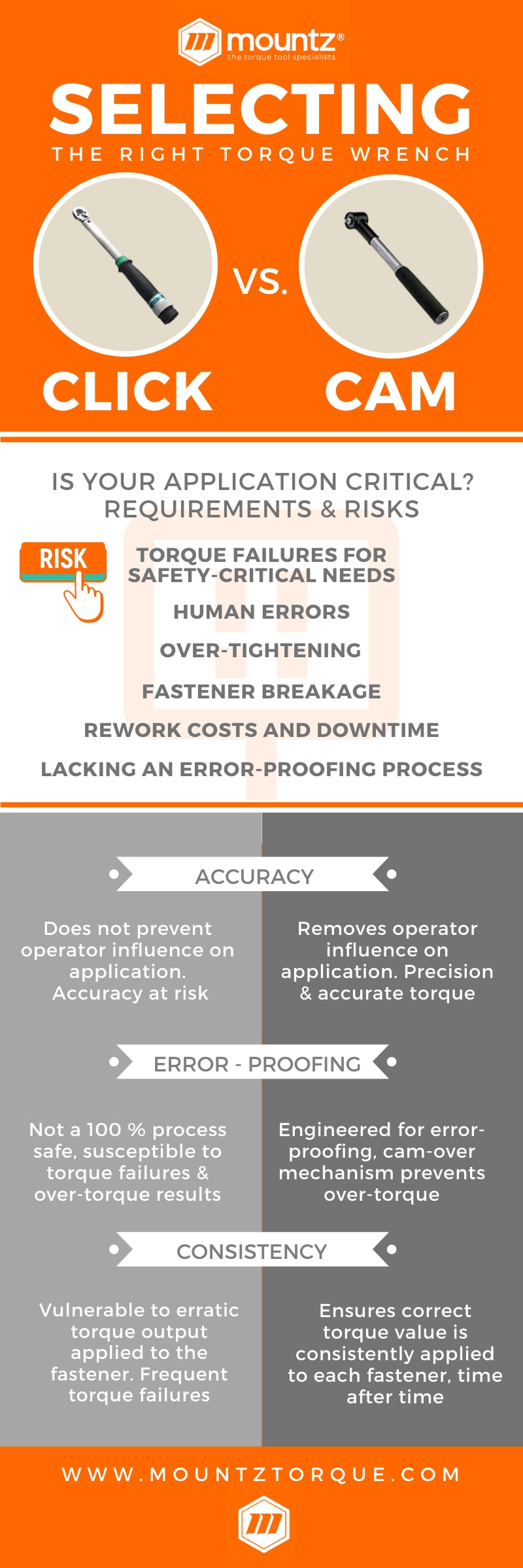

Learn about the error-proofing benefits of upgrading from a click wrench to a cam-over torque wrench in our "Click vs Cam-Over Wrench Technology" white paper.

The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).

Accessories

Calibration & Service:

  • Torque Analyzers & Sensors: If torque tools slip out of calibration, that could impact the quality of your products. An accurate way to regularly test calibration onsite is a great way to reduce risk and ensure safety. With Mountz torque analyzers and sensors, you can test tools before they go into service daily or weekly.

    Error-Proofing:

    • Engineered with a cam-over mechanism, cam-over poka-yoke torque wrenches reduce the possibility of operator error in both fastening directions, ensuring correct torque is applied and preventing fastener breakage.
    • Providing the operator with a preset tool prevents tampering and ensures that operators always use the appropriate torque setting—unmatched security of the tamper-proof internal adjustment. No external adjustment scale—must be preset using a torque analyzer.


    Ergonomics:

    • Ergonomic cushion grip reduces discomfort, fatigue, and risk of injury.


    Mountz Quality Standards:

    • Our tools are durable & reliable. We provide an industry-leading warranty: 2 years unconditional. Lifetime against defects.
    • Calibration life 2x ISO standards, unmatched by any torque wrench.
    • The FGC wrench has been qualified with a PFAS-free lubricant.
