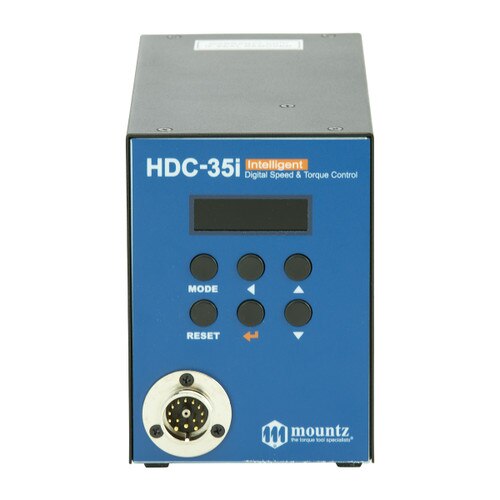

HDC35i Hybrid Torque Controller

Item #: 145820
Certifications:
$4,950.00

This tool typically ships within 3 -4 weeks. For further information, call 408-684-1442.

The HDC35i controller operates with only the PHD35N, PHD50N, PHD100N & HD100N electric screwdrivers. It is a single READ MORE

Required Companion Items:

Item #145737
$595.00
Item(s) successfully added to your cart.
Item #145822
$495.00
Item(s) successfully added to your cart.

Specs

Model:
HDC35i
Item #:
145820
Tool Weight:
5.7 lbs.
Tool Length:
9
Tool Width:
4.125
Tool Height:
5.66
Output VDC:
DC35V, 4A
Input VAC:
AC120VC ~ 220V, 50–60Hz
The HDC35i controller operates with only the PHD35N, PHD50N, PHD100N & HD100N electric screwdrivers. It is a single tool controller that offers programmable speed, angle, auto reverse  and soft start options. I/O interface for communication with external devices such as PLC. The controller provides programmable fastening options for sequence based assembly automation applications, along with a built-in screw counter.
    • Programmable digital torque setting with memory for 8 preset torque settings.
    • Real-time monitoring and torque control of the tightening process.
    • Selectable speed up to 1,800 rpm.
    • Programming and monitoring with PC software.
    • Programmable multi-sequence operation.
    • Built-in Screw Counter (0 to 99 screws)
    • Detection of fastening error and displays error condition.
    • Visual assembly fastener count (count up or down), including total count.
    • Real time monitoring by PC program.
    • Detects - cross threading, omissions, unfinished rundowns and cycle complete.
    • Three selectable units of measure: lbf.in, N.m, Kgf.cm.
    • Selectable settings for Torque, Speed, Min & Max Angle, and Soft Start time.
    • Maximum angle control and verification
    • Minimum angle control and error reporting

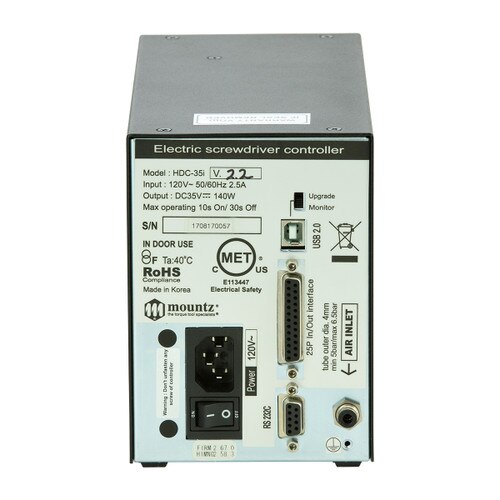

    • 25P I/O interface to a PLC or 8 direct sensor ports.
    • Input / Output for PLC.
    • Output Signal Types: Count complete, Torque up and Count complete Alarm & Screw Missing
    • Angle Control: 0.1 - 10 turns
    • Preset Parameters: Torque, Speed, Soft Start & Angle in 8 preset numbers
    • Auto detection of the connected driver: Auto detection of the offset value from the EEProm on the driver
    • Error display: Error display by code no. in system, communication & pattern error group
    • Fastening Quality Control: OK/NG monitoring of screw fastening by preset pattern of angle and/or time.
    • PC based program for parameter settings, monitoring and real time output
    • Input (Air Pressure): Min 5 Bar (72.5 PSI) / Max 6.5 Bar (92.2 PSI)
Operates with these electric screwdriver models: PHD35N, PHD50NPHD100N & HD100N
