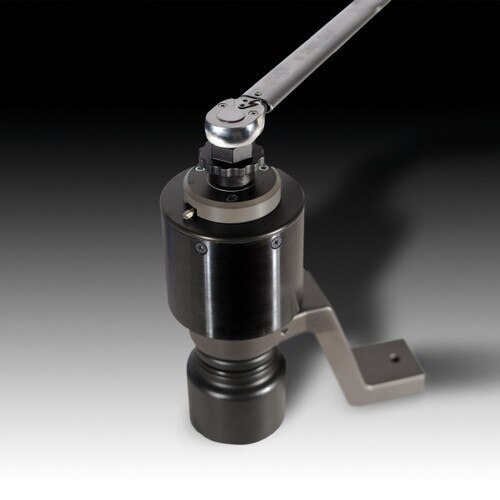

HG-30 Manual Torque Multiplier

Item #: 213705
$3,665.00
HG hand torque multipliers are the ideal tools for applications where air and electricity aren't easily accessible. The READ MORE
Model:
HG-30
Item #:
213705
Drive Size:
1 1/2" Sq. Dr.
American:
- 3687 lbf.ft
S.I.:
- 5000 N.m
Metric:
- 510 kgf.m
Tool Weight:
15.6 lbs.
Tool Length:
9.8
Torque Multiplication:
14.3:1
Gear Ratio:
18
Spline Diameter:
72 mm
D2 Size (mm):
98

Item(s) successfully added to your cart.

Please select your calibration option below before adding to cart

Add Calibration Certificate — $90.00

Please select an option:
  ADD CERTIFICATE
  NO CERTIFICATE NEEDED

Time Interval is required

T
F
T

Product Details

HG hand torque multipliers are the ideal tools for applications where air and electricity aren't easily accessible. The gearing design allows for a high torque output with minimal input. Commonly used in petrochemical, power generation, transportation, shipping and maintenance industries.
Accuracy better than ± 5%

Product Benefits

  • Precision tightening and loosening of all heavy duty fastening connections.
  • For operation in combination with a torque wrench.
  • Torque Multiplication Ratio - low energy input with high torque output.
  • Compact design allows for operation in space-restricted applications.
  • Ideal tool for applications where air and electricity aren't easily accessible.
  • Most models furnished with anti-windup ratchets allowing jobs to be performed easily, efficiently and safely.
  • Constructed with quality steel.
  • Each tool contains a torque multiplication selection chart.
  • Commonly used in petrochemical, power generation, transportation, shipping and maintenance industries.
Note! H-10 & H-15 models are not fitted with Anti-Windup. All models are supplied with a Reaction Foot, except HG-80 model is supplied with a Reaction Ring.
