Legacy Product
This product has been replaced by: FG-8i IFR Preset Torque Screwdriver

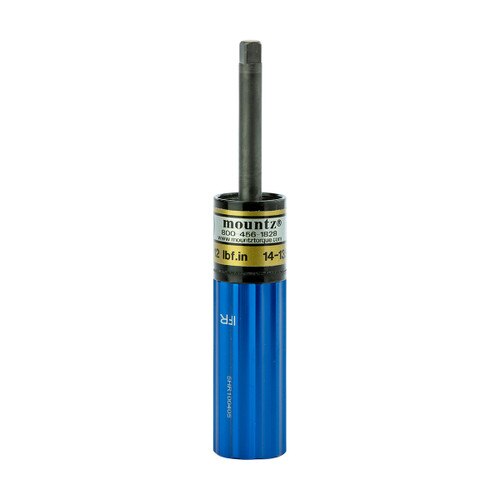

IFR Minor TLS0135 Preset Torque Screwdriver SD

Item #: 020465

READ MORE

Specs

Model:
IFR Minor
Item #:
020465
Drive Size:
1/4" M/Sq.
American:
1.2 - 12 lbf.in
S.I.:
14 - 135 cN.m
Metric:
1.4 - 13.7 kgf.cm
Tool Weight:
7.4 oz.
Tool Length:
5.6
Handle Color:
Blue

The IFR Minor TLS0135 blue preset torque screwdriver product has been discontinued. You can access supporting product information from this page. <br><br>The design action of the standard TLS screwdrivers is such that when the tool reaches its pre-set torque value the mechanism disengages from the drive thus limiting the torque applied. Further rotation of the screwdriver handle resets the mechanism ready for the next torquing operation. The IFR models eliminate any small reaction during resetting.

The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).

Related Products

  • Various models that range from 1.2 - 120 lbf.in.
  • All IFR models are "impact free" when the cam resets.
  • Screwdriver is torque limiting in the CW direction only.
  • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
  • Four different colored lightweight aluminum handles allow color coding of specific torque values in production areas. (TLS1360 - Black only)
Note! Class 100 Clean Room models available
