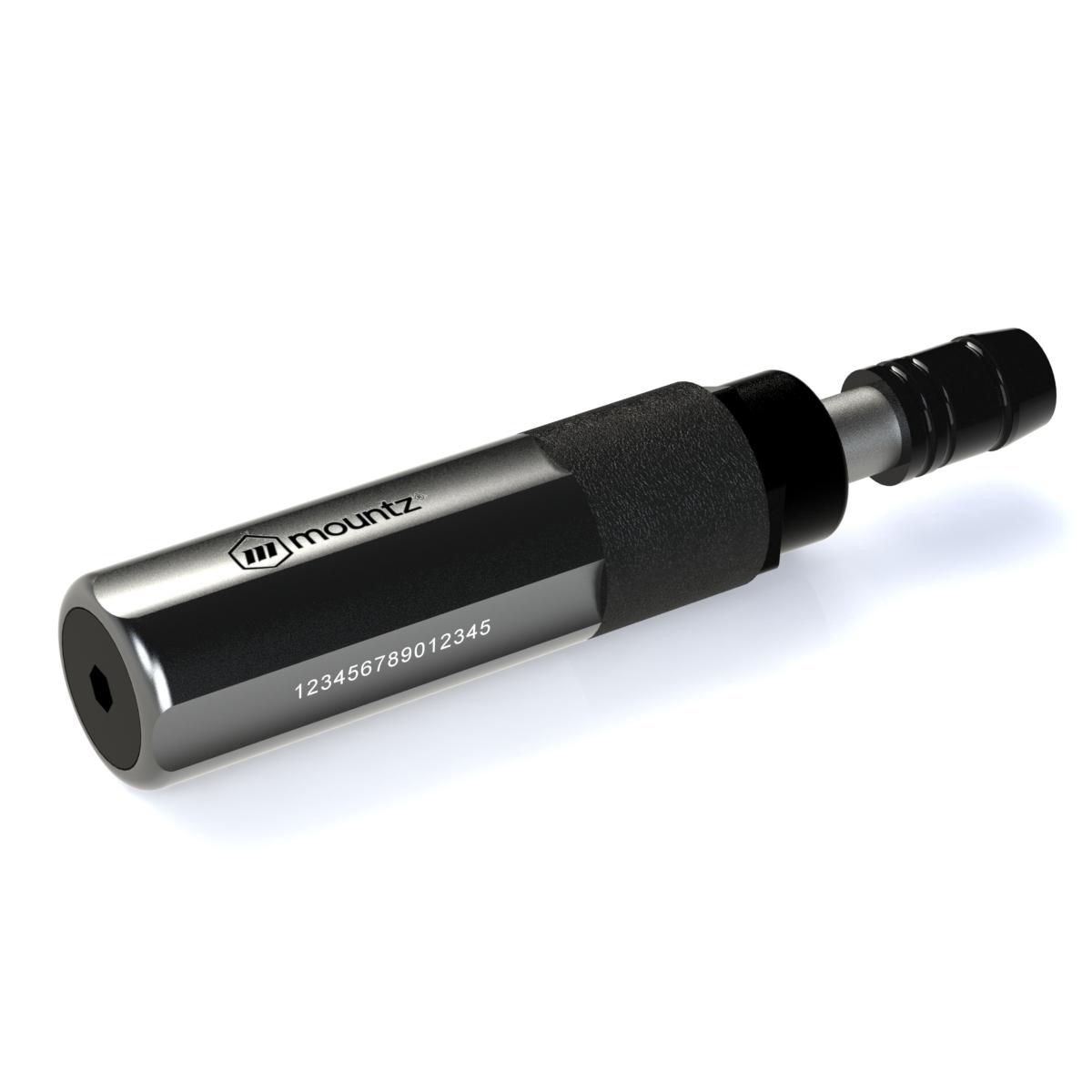

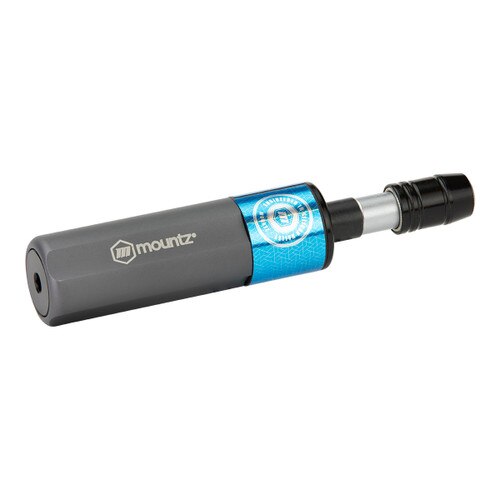

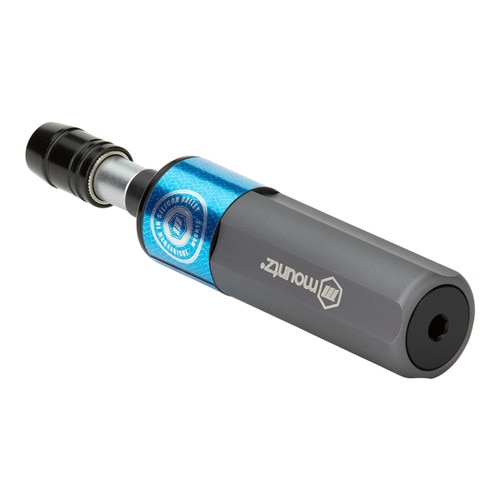

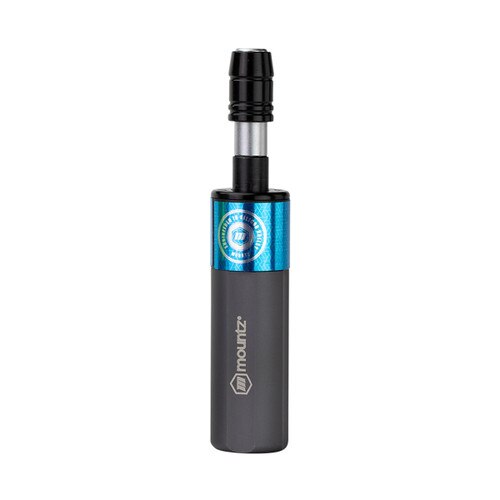

FG-8i IFR Preset Torque Screwdriver with Blue Label

Item #: 076651
$375.00
In Stock

The Mountz FG-IFR (Impact Free Resetting) Preset Torque Screwdriver is engineered for critical faste READ MORE

Calibration Options For This Product:

Add Calibration Service — $45.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Note: If you'd like to engrave multiple items with different engraving text you will need to add them to the cart individually. Engraved tools and engraving fees are non-refundable.

View Engraving Location

Item(s) successfully added to your cart.

F
T
T

Specs

Model:
FG-8i IFR
Item #:
076651
Drive Size:
1/4" F/Hex
American:
0.8 - 8 lbf.in
S.I.:
9 - 90 cN.m
Tool Weight:
7.3 oz.
Tool Length:
5.2
Label Color:
Blue

The Mountz FG-IFR (Impact Free Resetting) Preset Torque Screwdriver is engineered for critical fastening applications where precision, repeatability, and protection of delicate components are essential. Featuring Mountz's innovative Impact Free Resetting (IFR) cam-over technology, the screwdriver minimizes vibration and reaction force during the reset cycle, making it the ideal fastening solution for shock-sensitive assemblies including electronics, medical devices, plastics, optics, and precision instruments.


Unlike conventional cam-over screwdrivers, the FG-IFR incorporates a low-impact reset mechanism that significantly reduces the vibration transmitted to the fastener and surrounding components. This helps protect fragile assemblies while improving fastening consistency and product quality. The cam-over mechanism prevents over-torque, reducing fastener breakage, and supporting poka-yoke (error-proofing) manufacturing processes.


Preset torque screwdrivers are optimized for applications where the same torque value is repeatedly required. The FG-8i IFR is internally adjustable using a hex key and torque tester, allowing quality managers or technicians to securely preset the desired torque value without an external adjustment scale. If production requirements change, the tool can be recalibrated and reset using a torque analyzer for additional flexibility.

Whether used on electronics, medical devices, aerospace components, or other high-value assemblies, the FG-IFR gives manufacturers confidence that every fastener is installed accurately, consistently, and without damaging sensitive components.

The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).

Accessories

Calibration & Service:

  • Torque Analyzers & Sensors: If torque tools slip out of calibration, that could impact the quality of your products. An accurate way to regularly test calibration onsite is a great way to reduce risk and ensure safety. With Mountz torque analyzers and sensors, you can test tools before they go into service daily or weekly.

    Error-Proofing:

    • Engineered with a cam-over mechanism, cam-over poka-yoke torque screwdrivers reduce the possibility of operator error in the clockwise fastening direction, ensuring correct torque is applied and preventing fastener breakage.
    • Providing the operator with a preset tool prevents tampering and ensures that operators always use the appropriate torque setting—unmatched security of the tamper-proof internal adjustment. No external adjustment scale—must be preset using a torque analyzer.


    Process Improvement:

    • Use color-coded label options for visible and easy-to-understand torque setting identification.


    Ergonomics:

    • Ergonomic handles are designed with fewer flutes and larger recesses to make the tools easier to hold, and less likely to cause hand fatigue.


    Advanced Technology:

    • The FG-IFR model is "impact-free resetting" when the cam mechanism resets and the tool is calibrated in the CW direction only.
    • Mountz torque unique bearing system eliminates axial load and sideloads on the fastener applied by the operator.
    • Mountz tools use a patented secure bit-locking mechanism with a one-touch release, enabling greater flexibility of applications and efficiency on the line.
    • Reduced bit wear lowers the incidence of bits falling out, which can slow production or cause product damage.
    • The new design improves serviceability, reduces downtime, and enables the replacement of individual parts to extend the life of your investment.
    • The FG screwdriver has been qualified with a PFAS-free lubricant.


    Mountz Quality Standards:

    • Our tools are durable & reliable. We provide an industry-leading warranty: 2 years unconditional. Lifetime against defects.
    • Calibration life is 4x ISO standard. Unmatched by any torque screwdriver.
    • All Mountz-designed hand tools endure extensive Cmk testing over 20,000 continuous torque readings. Review our technical whitepaper to learn more!
