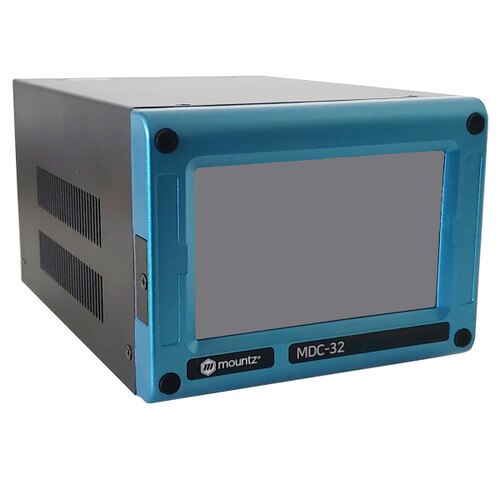

MDC-32 Controller V2 with SD Card Data Memory (120V)

Item #: 310158
Certifications:

This tool typically ships within 4 - 5 weeks.

The MDC V2 controller operates with only the MD-Series electric screwdrivers. It is a single tool controller that offers READ MORE
Request a Quote

Specs

Model:
MDC-32 Controller V2 with SD Card Data Memory (120V)
Item #:
310158
Tool Weight:
4.4 lbs.
Tool Length:
8
Tool Width:
5
Tool Height:
4.5
Output VDC:
DC38V 3.5A
Input VAC:
AC120VC, 50-60Hz
The MDC V2 controller operates with only the MD-Series electric screwdrivers. It is a single tool controller that offers programmable speed, angle, auto reverse and soft start options. I/O interface for communication with external devices such as PLC.
    • Preset selection capability: Front panel or 25P I/O
    • 15 presets, with 30 adjustable parameters
    • Fastening strategies: torque, speed, soft start and angle
    • Auto detection of connected driver when controller is powered on
    • Error display codes
    • Fastening Quality Control: OK/NOK monitoring of screw fastening process
    • PC based program for parameter settings, monitoring and real time output
    • Front panel 5” Color LCD with touch screen
    • Communication 1 x RS232C, 1 x Ethernet
    • Modbus and Open protocols
    • Includes SD card for data storage
    • Supplied with lift stand
Operates with Electric Screwdriver Models: MD-32 Series
