Legacy Product
This product has been replaced by: TBX-12 Break-Over Wrench

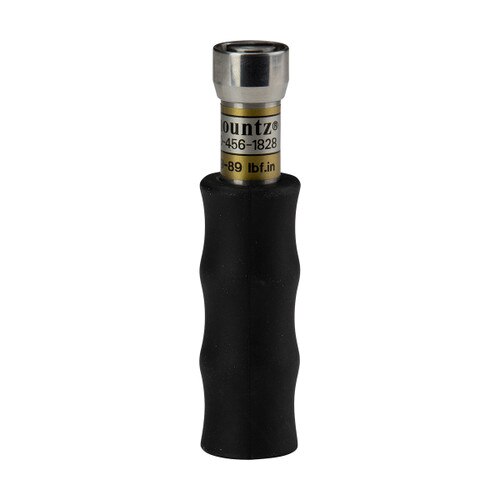

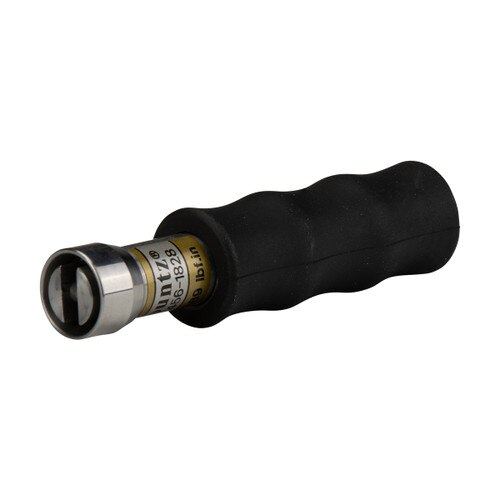

MTBN10 Preset Break-Over Wrench

Item #: 020315
The MTBN10 break-over wrench product has been discontinued. You can access supporting product information from th READ MORE

Specs

Model:
MTBN10
Item #:
020315
Drive Size:
Captive Pin
American:
9 - 89 lbf.in
S.I.:
1 - 10 N.m
Metric:
10 - 102 kgf.cm
Tool Weight:
4.6 oz.
Tool Length:
4.1
Break:
20° or 90°
The MTBN10 break-over wrench product has been discontinued. You can access supporting product information from this page.
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).

Accessories

The flexible MTBN wrench can adapt to a variety of interchangeable head fittings.

Head options for wrenches MTBN 10 model
  • A preset production torque wrench with flexibility to adapt to different applications with ability to change different head options. Breaks over upon reaching preset torque and reset automatically.
  • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
  • All models are are fitted with double positive torque adjustment locking system to prevent tampering.
  • Compact and well balanced. Ideal for use in restricted areas.
  • Interchangeable Heads for all models are available.
  • ESD safe.
